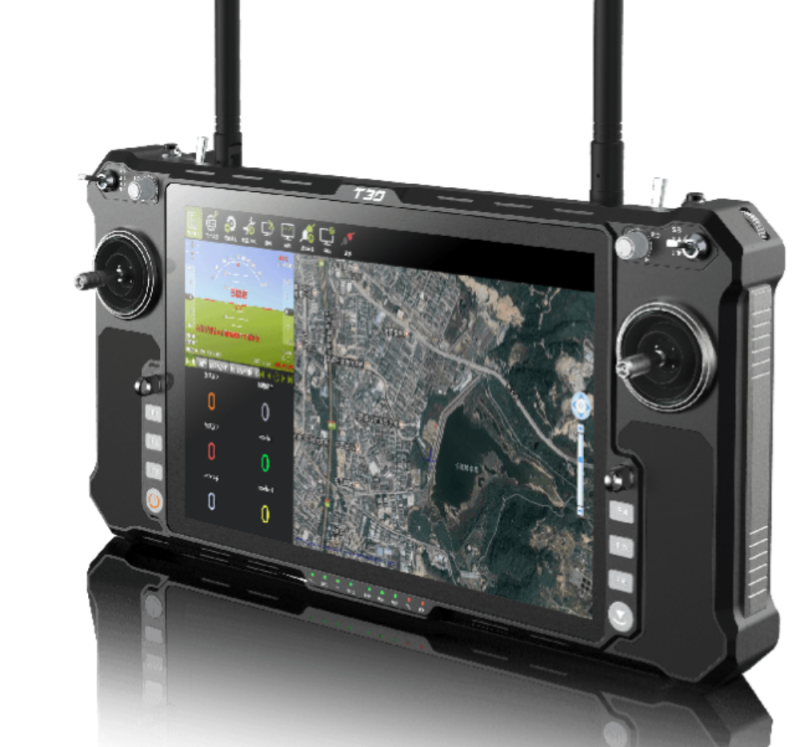

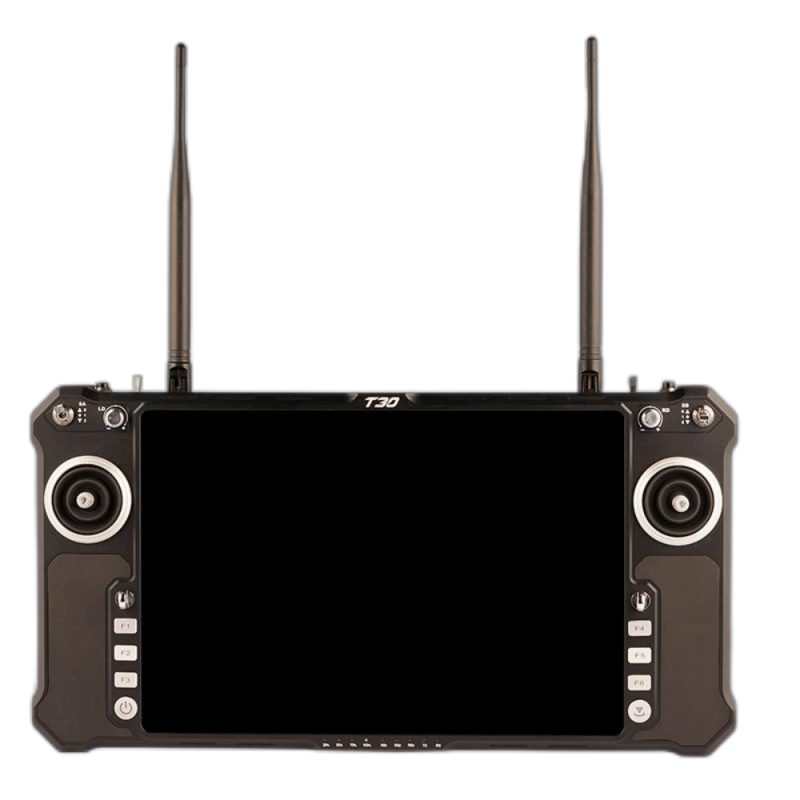

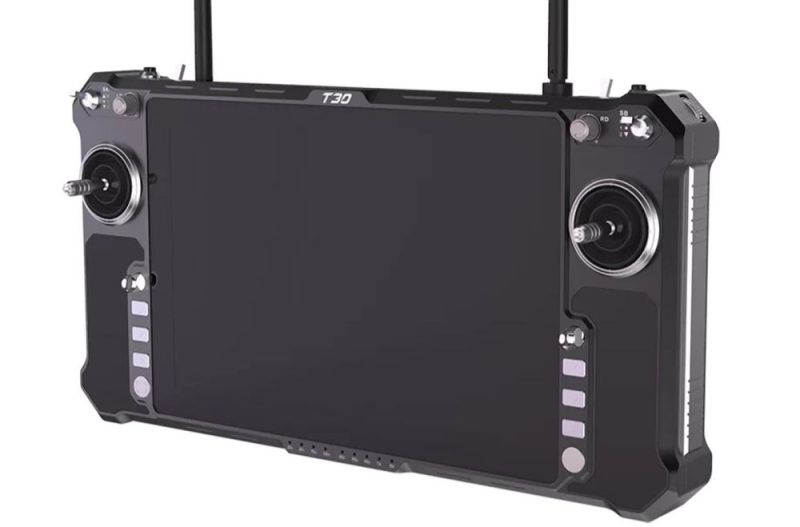

Version Single Screen Handheld Integrated Remote Control T30
1. UAV single screen remote controller has a light and compact design, which can provide a comfortable operating experience during long-distance flights.
2. The easy-to-use UAV single screen remote controller enhances the flight experience.
3. High-definition real-time video display, which can clearly display the real-time picture of the drone.
4. UAV single screen remote controller adjustable brightness and contrast settings for optimal visibility under different light conditions.
- Information
Introduction of Version Single Screen Handheld Integrated Remote Control T30:
T30 is an individual handheld device that integrates an industrial-grade PC system and an integrated link remote control system. The Agricultural drone remote control has functions such as remote control of aircraft, remote control pan/tilt, real-time flight status feedback, real-time remote control status feedback, and route planning. Platform, suitable for most flight control systems on the market.The UAV single screen remote controller adopts a single screen design, which is comfortable to hold and easy to operate. The housing of this UAV built-in screen remote control is made of high-quality materials, which is durable and has a good feel. Our Single screen remote control for Windows is equipped with a high-definition touch screen, moderate in size and clear display. Users can perform various operations through the touch screen, such as adjusting channels, volume, brightness, etc.
Advantages of Version Single Screen Handheld Integrated Remote Control T30:

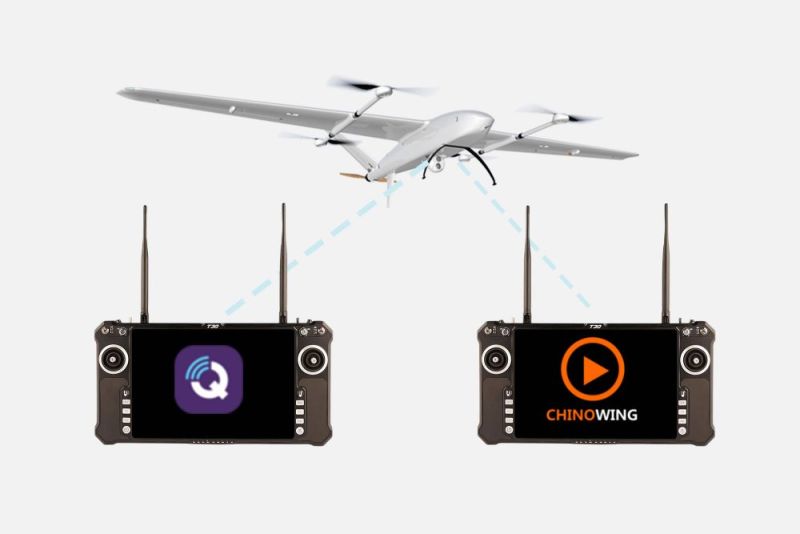

1. Windows or LINUX system platform supports most of the ground station software in the market;
2. Single screen remote control for Windows is a data link transmission device with two S-Bus signals and digital signals. It is mainly used to solve the problem of short transmission distance between remote control signal and digital transmission signal and low transmission quality.
3. Single screen remote control for Windows has the characteristics of small size, good integration and high sensitivity. In the 915MHZ frequency band, the maximum communication distance can reach 30KM.

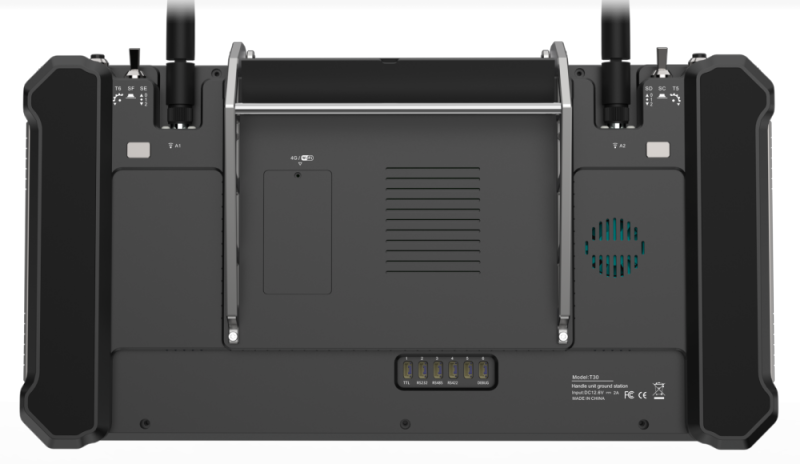

4. Super many external output interfaces 5 serial ports, each with TTL, RS232*2, and expandable aviation plug interface;

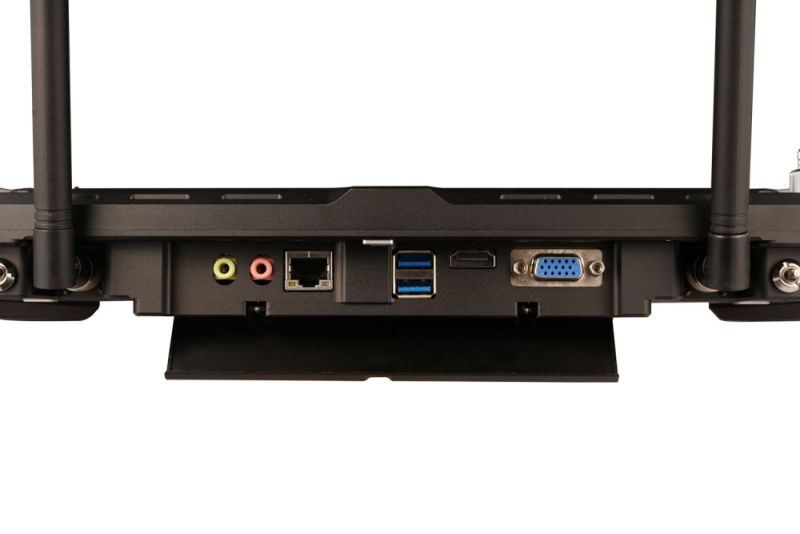

5. WIFI, BULETOOTH, 4G, Gigabit Ethernet port, HDMI output, built-in high-fidelity audio, and external monitoring headphones.
Main technical parameters of Version Single Screen Handheld Integrated Remote Control T30:
Ground end | |
Product number | T30 |
Aisle | 23 channels |

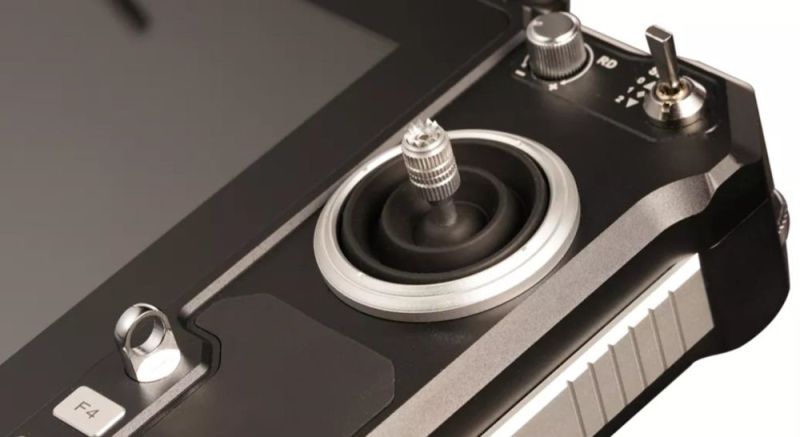

Joystick type | Professional Joystick/Hall Remote Rod |
Auxiliary channel and quantity | Main joystick × 2 |
Remote control distance | Three gear switch × 4 |
RF power | Rotary switch × 2 |
Remote delay | Key switch × 11 |
Battery capacity | Wheel × 2 |
Battery life | Combination button*5 |
Display screen | Super key combination*2 |
Resolution | 10~30KM (depending on environmental factors) |
Touch | 30dBm |
Processor | 40ms |
Memory | 12.6V/10200mAH, plug-in battery |
Graphics card | 3.5 hours at full load |
Storage | 10.1 inch, 800ccd sunlight visible screen |
Operating system | 1280*800 (standard configuration) |
Three defense features | 1920*1200 |
Wireless network | 10-point industrial touch |
External serial port | i7 5500U/dual-core 2.4GHZ |
External interface | i5 6200U/ 2.3GHz dual-core (standard configuration) |
Adapter | 12.6V/4A |
Operating temperature | -10~+60℃ |
Total Weight | 2410g |
Total measurement | 364mm(L)*190mm(W)*40mm(H) |
Air terminal | |
Product number | R20 |
Working frequency | 902~928MHz |
External voltage | 7.4-24V |
Working current | 120MA (12V power supply) |
Transparent serial port | TTL/RS232(optional) |
Interface | SBUS *2 |
Power | 30dBm |
Antenna | 2-4dB Rod antenna |
Weight | 43g（Antenna not included） |
Size | 53mm*40mm*14mm |
Operating temperature | -10~+50℃ |
