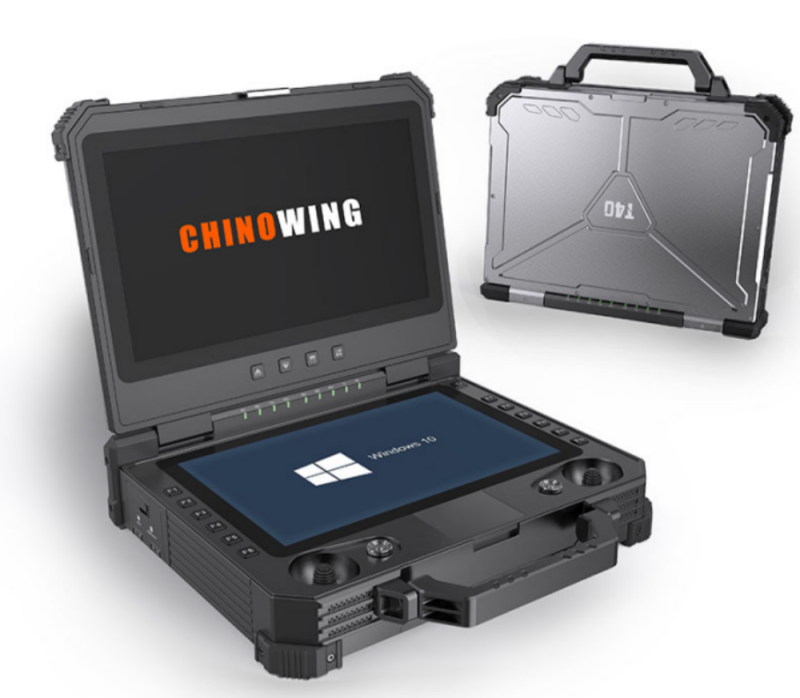

Windows Version Dual Screen Rugged Ground Station T40
1. Windows Version Dual Screen Rugged Ground Station T40 can be controlled in an integrated manner and multi-tasking can be easily handled.
2.Windows Version Dual Screen Rugged Ground Station T40 improves flight safety through real-time monitoring on two screens.
3. Windows Version Dual Screen Rugged Ground Station T40 is universally compatible with a variety of device types.
- Information
Introduction of Windows Version Dual Screen Rugged Ground Station T40:
T40 is a ground station system that integrates industrial-grade PC systems and integrated links. UAV dual screen three defense ground station has functions such as remote control aircraft, remote control gimbal, real-time flight status feedback, real-time remote control status feedback, and route planning. The platform is compatible with most flight control systems on the market.The Windows version dual-screen ruggedized ground station T40 is a device used in ground stations. It uses the Windows operating system and is equipped with dual-screen displays. This kind of ground station equipment is mainly used for communication and control tasks in aviation, aerospace, and other fields.
Advantages of Windows Version Dual Screen Rugged Ground Station T40:
High-definition bright dual touch screen and extended touchpad at the same time:

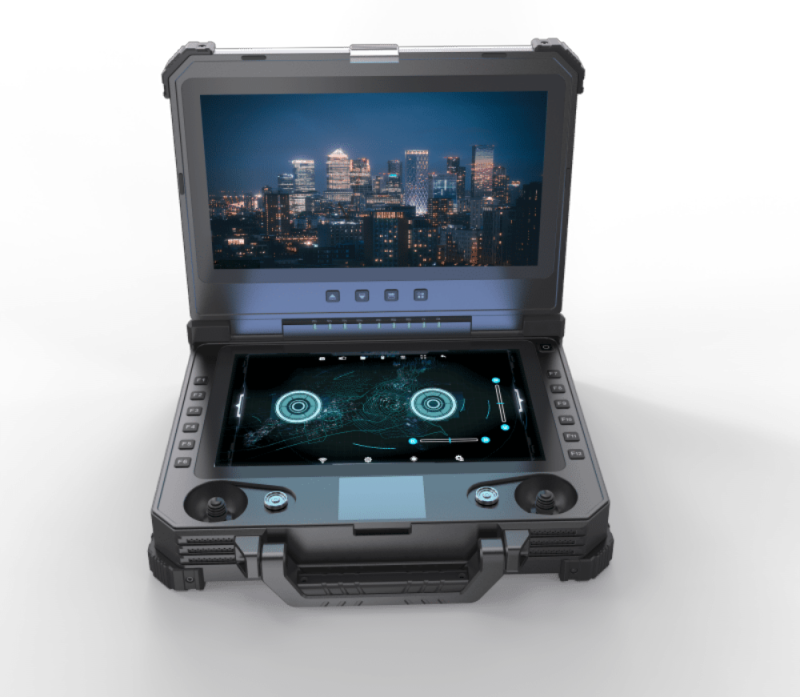

The drone dual screen all in one remote control adopts dual LCD screens, the upper screen displays images, and the lower screen displays the ground station system interface. Its ergonomic design conforms to the user's habits.
The joystick system can be freely mapped and supports traditional RC access:
The joystick system of drone dual screen all in one remote control provides a variety of programming modes, which can be mapped to each channel position of the 2-way SBUS respectively.
Domestic first soft key settings:
Each function button of drone dual screen all in one remote control can realize single-state, double-state, three-state control, add combination buttons, super combination button functions, and use buttons to simulate linear output functions and multi-function switching.
Highly integrated integration:
Support external HDMI port video input, realize the switching of computer split screen or external access.
Provide 4 RS232 interfaces, S-BUS*2 interface;
Integrate the long-distance digital control integrated data link, and the wireless link adopts the three-frequency technology to support 800MHZ, 1.4GH, 2.4GHZ at the same time.
Open SDK functions:
The drone dual screen all in one remote control is obtained through COM5 or USB HID, and the remapping function of each channel satisfies the user's more flexible application.
The main technical parameters of drone dual screen all in one remote control:
Ground end | |
Product number | T40 |
aisle | 20 channels |
joystick type | Professional Joystick/Hall Remote Rod |
Auxiliary channel and quantity | Main joystick × 2 |
remote control distance | Auxiliary joystick × 2, |
RF power | Key switch × 12 |
remote delay | Combination button*5 |
battery capacity | Super key combination*2 |
battery life | 20km (depending on environmental factors) |
display screen | 25dBm |
processor | 40ms |
Memory | 16.8V/17000mAH, external battery |
graphics card | 3.5 hours at full load |
storage | Upper screen 13.3 inches+1920*1080+1000cd/sunshine visible screen |
operating system | Lower screen 12.1 inch+1280*800+ 1500cd/sunshine visible screen |
Three defense features | I7 8565U 1.8G quad-core eight-thread processor |
wireless network | 8GB DDR4 (standard configuration) (maximum support 32G) |

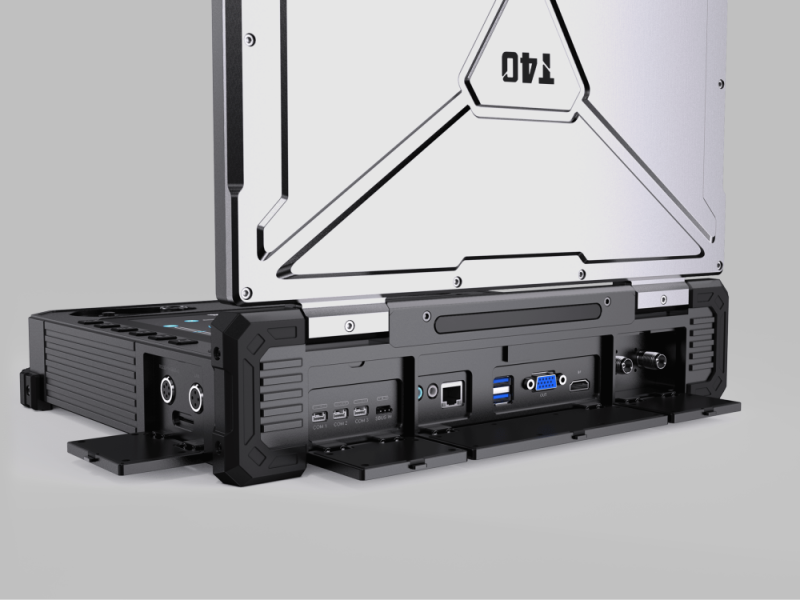

external interface | HDMI IN、SBUS IN、SBUS OUT *2、RS232*4、12V/3A OUT |
adapter | 16.8V/4A |
Operating temperature | -10~+60℃ |
Total Weight | 6270g |
total measurement | 354mm(L)*280mm(W)*70mm(H) |
Air terminal | |
Product number | V21 |
working frequency | 800M、1.4G(Standard)、2.4Ghz |
external voltage | 7.4-24V |
Working current | 300MA（12V powered by） |
Transparent serial port | TTL/RS232（optional）(expandable E11) |
interface | SBUS *2、LAN |
power | 25dBm |
antenna | 2-4dB rod antenna |
weight | 100g（Antenna not included） |
Size | 85mm*55mm*20mm |
Operating temperature | -10~+50℃ |
Dock | |
external voltage | 7.4-24V |
Number of serial ports | TTL * 1 RS232 * 2 Three serial ports, the three ports can work independently at the same time without affecting each other |
Serial working mode | Support TCP Server、TCP Client、UDP Client、UDP Server、Httpd Client |
Ethernet port | LAN*3@100M |
weight | 60g |
size | 85mm*55mm*13mm |
Operating temperature | -10~+50℃ |
