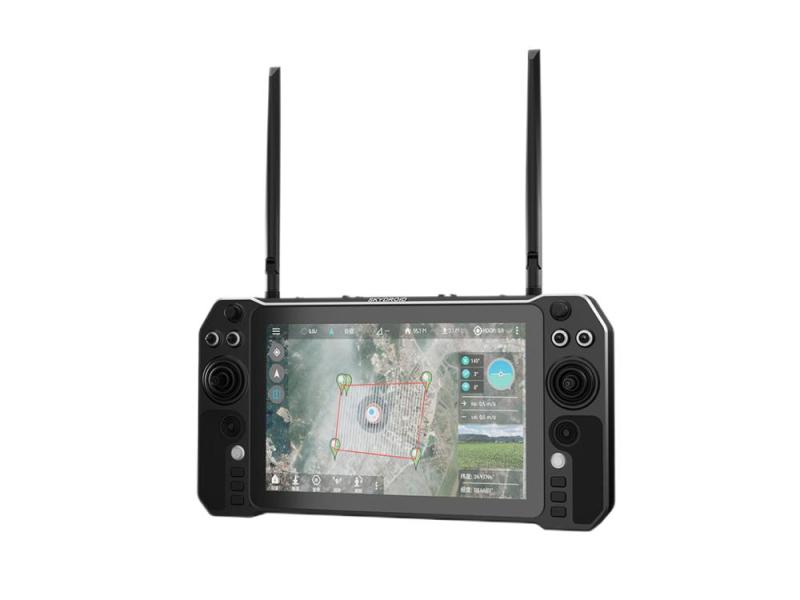

Android Version Handheld Integrated Remote Control H30

Introduction of Android Version Handheld Integrated Remote Control H30:

The H30 figure digital control integrated handheld remote control adopts a new surging processor, equipped with an Android embedded system, and adopts advanced SDR technology and super protocol stack. With clearer images, lower latency, longer distance and stronger anti-interference, Drone Remote Control H30 can be adapted to most drone systems.

H30 adopts 10.1-inch industrial touch screen + sunlight visible screen, which can still be viewed clearly under sunlight. The screen resolution is 1920*1200. Support 1080P high-definition digital image transmission. The signals of dual and triple frequency antennas complement each other, super strong signal, super long distance, with algorithm control and out-of-step frequency hopping algorithm, greatly increasing the weak signal communication capability. The maximum image transmission distance of the H30 can reach 50KM, and the three-band switching 800M, 1.4G, and 2.4G can be freely selected.

Drone Remote Control H30 supports HDMI, SIM card network port, USB port, type-c port, RJ45 network port, TF card slot, and PPM port. R30 dual-channel serial port transparent transmission, dual-channel network port, sbus and other rich interfaces. It also supports video devices such as cameras, gimbals, and pods with more network ports. Provide development kit, SDK and technical support, support video suspension, support mainstream flight control ground station, open source flight control Yunzhuo ground station, support QGC and wireless RTSP video stream sharing

Advantages of Drone Remote Control H30:

1. Drone remote control kit is highly integrated and lightweight design;

2. Free choice of 800M, 1.4G, 2.4G triple frequency, greatly enhance the anti-interference ability;

3. The drone remote control kit supports a transmission distance of up to 50km;

4. The drone remote control kit supports dual-channel data transmission and dual-channel image transmission;

5. The drone remote control kit has a double gimbal joystick design.

6. IP67 waterproof and dustproof.

Main specifications of Android Version Handheld Integrated Remote Control H30:

About us :

Shenyang Linghang Aviation Science&Technonlogy Co., Ltd. (" LHTechUAV") was established on March 20, 2018 in Sanhao Street, Heping District, Shenyang City, Liaoning Province. It is located in one of the first ten special commercial streets in China, which is a distribution center for computer and IT products in Liaoning Province and the whole Northeast region.

The company focuses on the application of UAVs, unmanned aerial equipment, light sport aircraft and other low-altitude aerial vehicles and their components composite materials research and development, production and sales, for general aviation equipment, military and civilian unmanned aerial equipment to provide one-stop R & D, design, manufacturing, technical support, etc. to provide a full range of system solutions.

The company's core technical team has more than ten years of experience in product development, production and application in the technical fields of flight control systems, software platform development, UAV and civil aircraft design, composite material production and industry application system solutions. They have been deeply involved in the development, design and manufacturing of the national ARJ regional passenger aircraft, C919 and C929 commercial aircraft, and have participated in the technical development and manufacturing of various commercial aircraft models such as the Canadian Bombardier CSeries, Q400 and MA700, and have a large reserve of professional technology and industry UAV commercial application cases.
