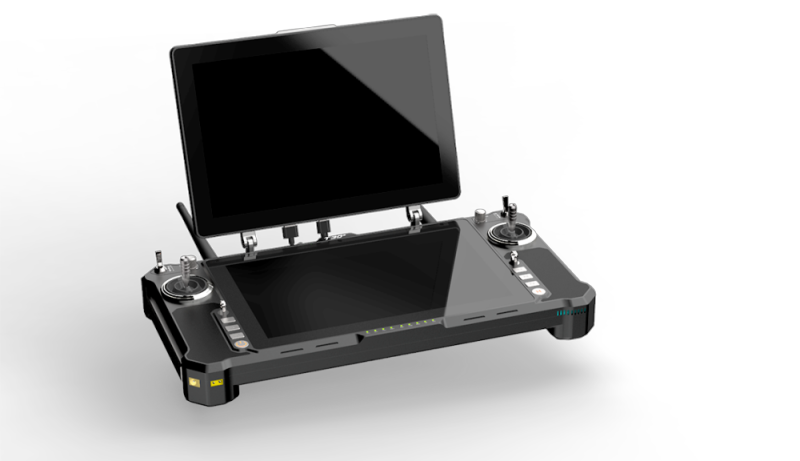

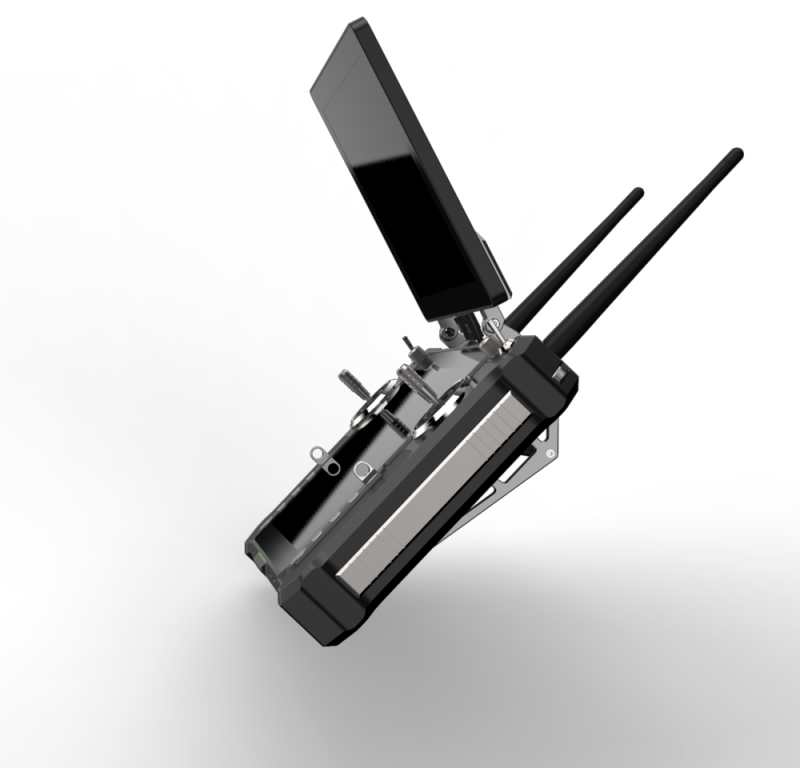

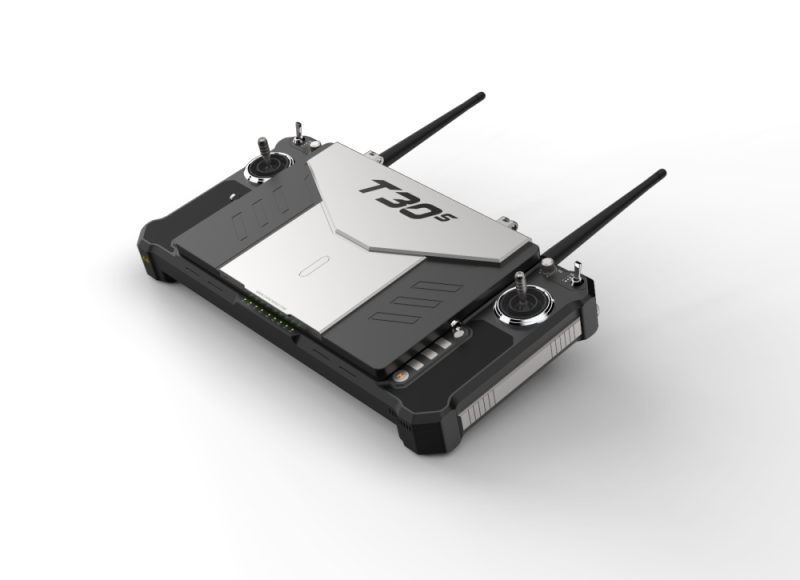

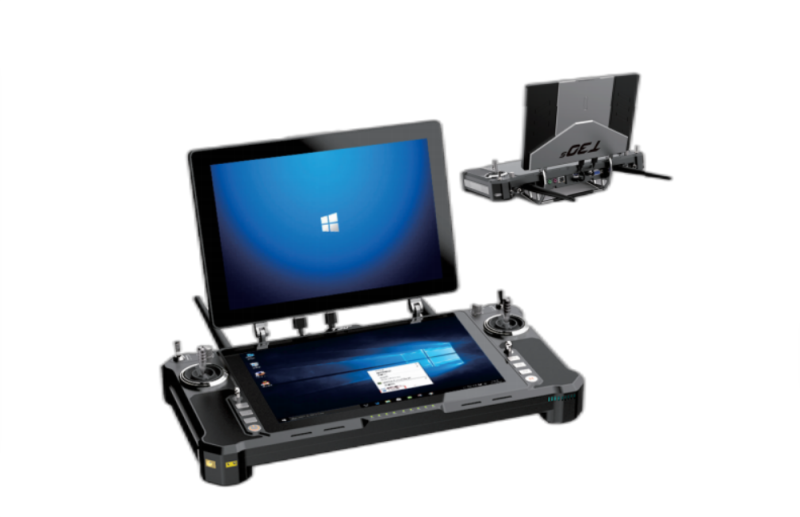

Version Dual Screen Handheld Integrated Remote Control T30S
1. Dual Screen Remote Control for Windows is compatible with a variety of drone models to achieve a variety of control options.
2. Dual Screen Remote Control for Windows is ergonomically designed for comfortable and precise operation during long-distance flights.
3. Dual Screen Remote Control for Windows is small and portable, easy to transport and store.
- Information
Introduction of Version Dual Screen Handheld Integrated Remote Control T30S:
T30S is an individual handheld device that integrates an industrial-grade PC system and an integrated link remote control system. Compatible with most flight control systems on the market.UAV dual screen remote control is an innovative remote control device that combines the functions of a handheld remote control and a dual-screen monitor. Dual screen handheld integrated remote control T30S adopts advanced technology and design to provide users with a more convenient and intelligent control experience.
Features of Version Dual Screen Handheld Integrated Remote Control T30S:
1. Windows or LINUX system platform supports most of the ground station software in the market;
2. Dual Screen Remote Control for Windows has a data link transmission device for two S-Bus signals and digital signals. It is mainly used to solve the problem of short transmission distance between remote control signal and digital transmission signal and low transmission quality.
3. The three-band all-in-one communication link supports 800MHz, 1.4GHZ, and 2.4GHZ at the same time. Users can set the software according to their needs, and the communication distance is 10km+;

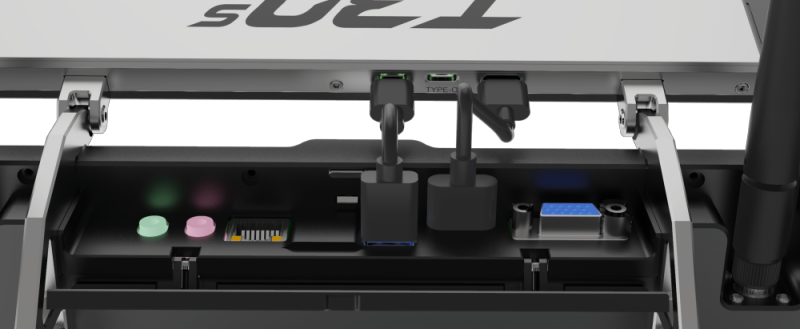

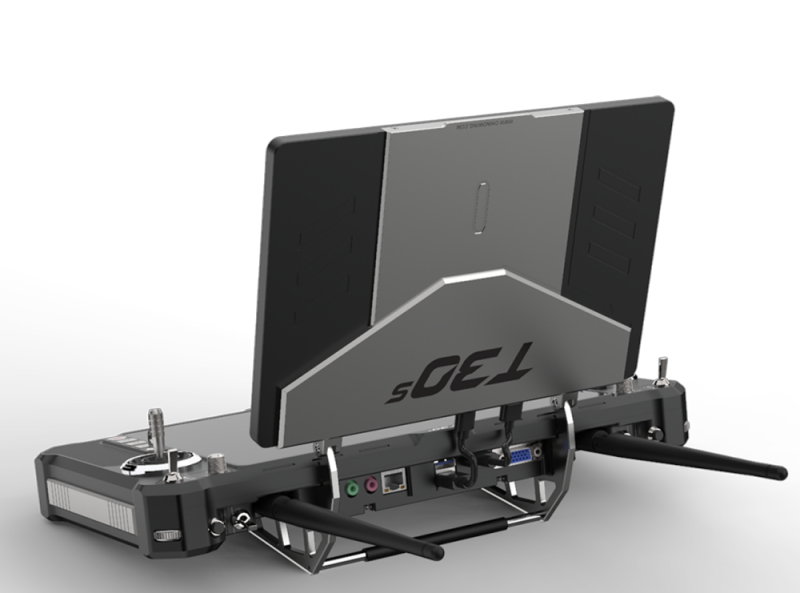

4. Dual Screen Remote Control for Windows has many external output interfaces, 5 serial ports, including TTL, RS232*2, and expandable aviation plug interface;
5. WIFI, BULETOOTH, 4G, Gigabit Ethernet port, HDMI output, built-in high-fidelity audio, and external monitoring headphones.
Main technical parameters of Dual Screen Remote Control for Windows:
Ground end | |
Product number | T30S |
aisle | 23 channels |
joystick type | Professional Joystick/Hall Remote Rod |
Auxiliary channel and quantity | Main joystick × 2 |
remote control distance | Three gear switch × 4 |
RF power | Rotary switch × 2 |
remote delay | Key switch × 11 |
battery capacity | Wheel × 2 |
battery life | Combination button*5 |
display screen | Super key combination*2 |
touch | 20km (depending on environmental factors) |
processor | 25dBm |
Memory | 40ms |
graphics card | 12.6V/10200mAH, plug-in battery |
storage | 2.5 hours at full load |
operating system | Upper screen: 10.1 inches, 800ccd 1920*1200 sunlight visible screen |
Three defense features | Lower screen: 10.1 inches, 800ccd 1920*1200 sunlight visible screen |
wireless network | 10-point industrial touch |
external serial port | i7 5500U/dual-core 2.4GHZ |
external interface | i5 6200U/ 2.3GHz dual-core (standard configuration) |
adapter | 12.6V/4A |
Operating temperature | -10~+60℃ |
Total Weight | 3192g |
total measurement | 364mm(l)*190mm(w)95mm(h) |
Air terminal | |
Product number | V21 |
working frequency | 800M, 1.4G (standard configuration), 2.4Ghz |
external voltage | 7.4-24V |
Working current | 300MA (12V power supply) |
Transparent serial port | TTL/RS232 (optional) (expandable to E11) |
interface | SBUS *2, LAN |
power | 25dBm |
antenna | 2-4dB Rod Antenna |
weight | 100g (without antenna) |
Size | 85mm*55mm*20mm |
Operating temperature | -10~+50℃ |
Dock | |
external voltage | 7.4-24V |
Number of serial ports | TTL * 1 RS232 * 2 Three serial ports, the three ports can work independently at the same time without affecting each other |
Serial working mode | Support TCP Server、TCP Client、UDP Client、UDP Server、Httpd Client |
Ethernet port | LAN*3@100M |
weight | 60g |
size | 85mm*55mm*13mm |
Operating temperature | -10~+50℃ |
