Power Inspection Powerline Drone Inspection
1. Power Inspection Powerline Drone Inspection inspection method is flexible and low-cost.
2. Power Inspection Powerline Drone Inspection is not restricted by terrain and is applicable to various scenarios.
3. Power Inspection Powerline Drone Inspection has high stability, is easy to carry, and flexible for take-off and landing.
- Information
Product introduction of Power Inspection Powerline Drone Inspection:

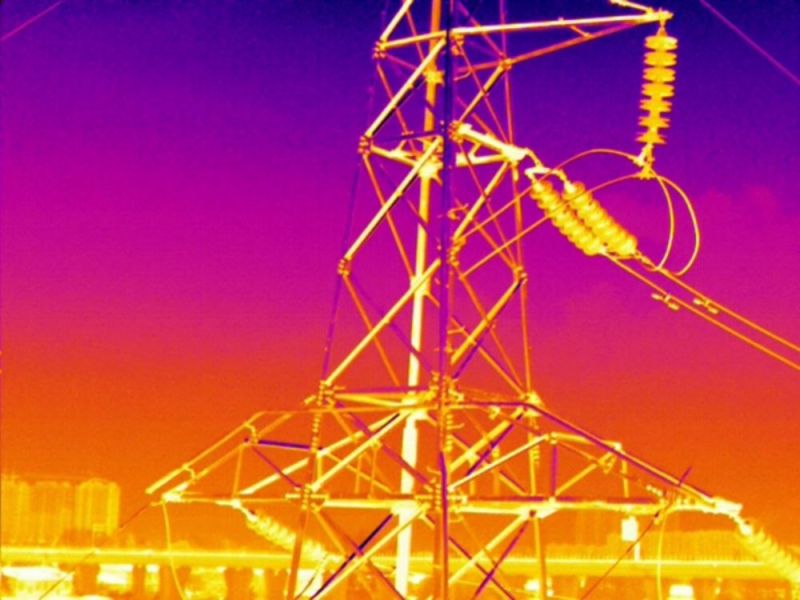

The main task of drone powerline inspections is to conduct automated and thorough inspections of power grid facilities and environments, reduce the error rate and risk of manual work, and improve work efficiency effectively. The specific applications of power inspection drone in power inspection work are mainly fine inspection, fixed-point inspection, range inspection, and other inspections. Using powerline drone inspection for power inspection, you can find foreign objects on the tower pole, damaged insulators, etc., and you can find defects that are difficult to inspect manually. With the continuous change of new-generation information technologies such as artificial intelligence, cloud computing, big data, and the Internet of Things, UAV remote sensing technology has also made a qualitative leap and entered a new era of intelligence.
Product advantages of Power Inspection Powerline Drone Inspection:
1. Intelligent UAV platform: drone powerline inspection is closely combined with 5G communication technology, and it is developing from networked and real-time to intelligent.
2. The power inspection drone can adapt to complex terrain, as traditional manual inspections require staff to go to the site in person. Since there are no roads in many mountainous areas, the staff have to face difficult environmental conditions and reach the position of the signal tower on time. The signal tower is relatively high, and it difficult for people to see clearly on the ground, so it is necessary to climb up for inspection, and the risk factor also increases. However, drone inspections can adapt to complex terrain and difficult environments and can easily conduct high-altitude inspections.
3. Intelligent data analysis: In powerline drone inspection, artificial intelligence technology is introduced to continuously optimize models and algorithms to realize rapid data collection and intelligent analysis.
4. Drone powerline inspection has a long flight time, stable performance, high reliability, and easy operation. It is easy to carry, can be taken off and land flexibly, and has low cost of use.
The main technical parameters of Power Inspection powerline drone inspection:
Performance / index | Parameters |
Number of rotors | Quad rotor |
Symmetrical wheelbase | 900mm |
Maximum takeoff weight | 10kg |
Maximum payload | 3kg |
Flight duration | 45min@1kg Payload |
Maximum voyage | 25km |
Maximum leveling speed | 15m/s |
Maximum climbing speed | 4m/s |
Cruising speed | 8-10m/s |
Maximum rise limit | 2000m |
Maximum use altitude | ≤5000m |
Control distance | Hand-held integrated ground station: 10km (standard) |
Wind resistance grade | ≤12m/s（Force 6 wind） |
Use environment | -10℃+45℃; Prevent light rain |
