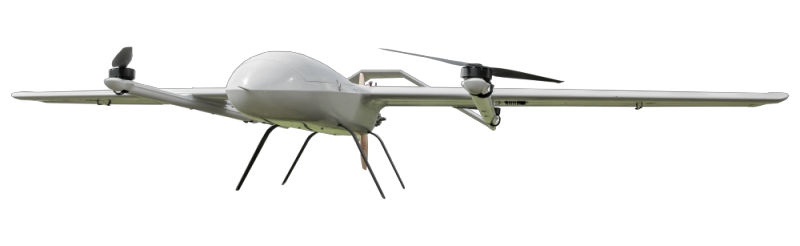

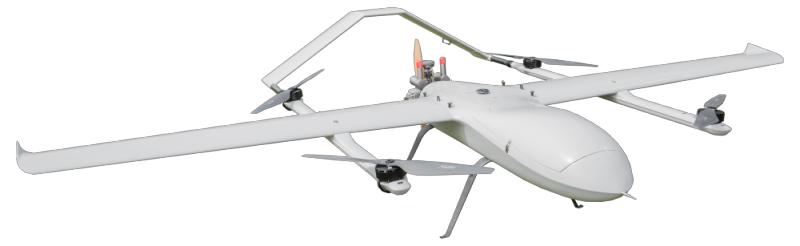

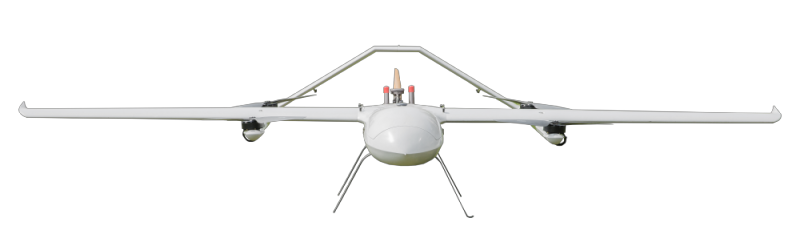

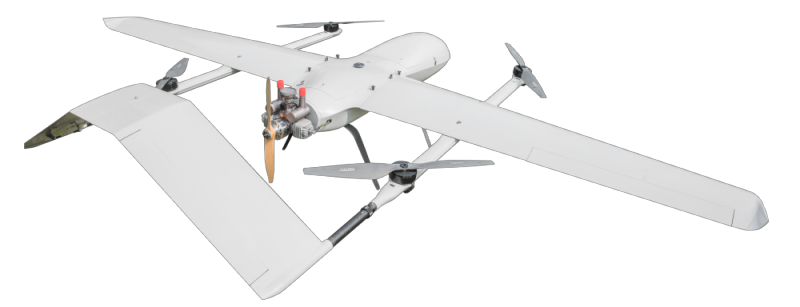

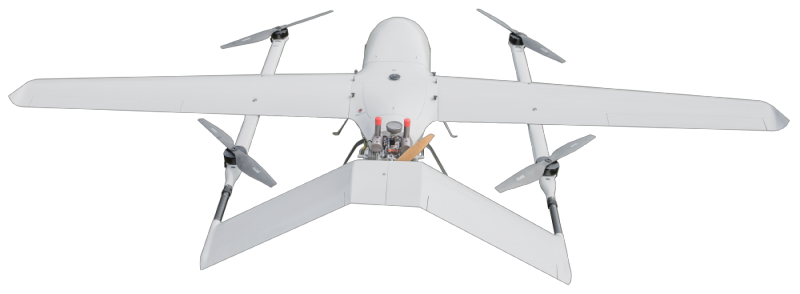

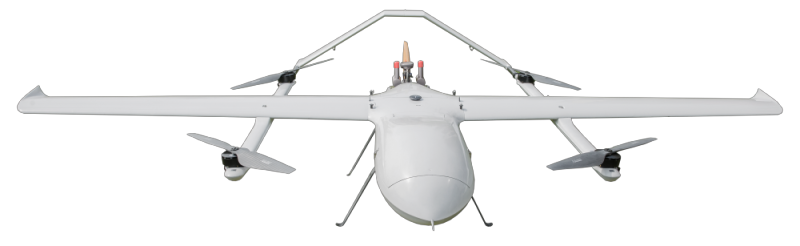

Oil Powered Long Endurance Surveillance VTOL
1. Oil Powered Long Endurance Surveillance VTOL can perform real-time monitoring.
2. Oil Powered Long Endurance Surveillance VTOL can adopt a variety of monitoring methods.
3. Oil Powered Long Endurance Surveillance VTOL can operate automatically.
- Information
Product introduction of Oil Powered Long Endurance Surveillance VTOL:
The VF25E UAV platform is an electric long-time composite wing vertical takeoff and landing UAV developed by our company. Reconnaissance VTOL UAV refers to real-time monitoring and tracking of monitored subjects through various technologies and means, capable of long-endurance, and a wide range of surveillance and reconnaissance missions. Long endurance VTOL UAV can monitor targets through radar, optics, radio, and other equipment or sound monitoring and other technical means, obtain the target's position, speed, attitude, and other information in real time, and track and early warning. The purpose of the VTOL surveillance drone application is mainly to prevent some illegal activities and potential threats. It can also help relevant departments in managing public safety and ensure the establishment of a safe social environment. Oil Powered Long Endurance Surveillance VTOL adopts a petrol-electric hybrid and multi-rotor structure, which provides faster flight speeds and can be used with some equipment to effectively carry out safety monitoring, resource management, environmental monitoring, etc.
The product advantages of Oil Powered Long Endurance Surveillance VTOL:
1. The long endurance VTOL UAV uses gasoline-electric hybrid power, which has a longer flight time and a larger coverage area. It can monitor the subject's activity range and activity trajectory, and overall coverage area, and effect can be improved.
2. The VTOL surveillance drone has little environmental requirements. No matter where the subject moves, this product can monitor the target's position and track it in real time. Even if the environment is very harsh, the requirements for the VTOL surveillance drone are very small.
3. The Reconnaissance VTOL UAV adopts a multi-rotor design, which can provide faster flight speeds and can quickly respond to some violations or potential threats and take corresponding measures to deal with them.
4. Oil Powered Long Endurance Surveillance VTOL is a type of industrial application drones, but it is equipped with an industrial-grade flight control system, making the flight process very stable and reliable.
The main technical parameters of Oil Powered Long Endurance Surveillance VTOL:
Sexual energy / index | Parameters. |
Fuselage length | 1750mm |
Wingspan | 3600m |
Maximum takeoff weight | 28kg |
Maximum payload | 8kg |
Flight duration | 180min@2kg Payload |
Maximum voyage | 240km |
Cruising speed | 80-100km/h |
Stall speed | 75km/h |
Maximum rise limit | 3000m |
Maximum use altitude | ≤5000m |
Control distance | Remote control：1km Ground station：30km（Standard configuration） |
Wind resistance grade | ≤12m/s（Force 6 wind） |
Use environment | -10℃+45℃; Prevent light rain |
PRODUCT APPLICATION:
● We provide customers with quality services, including pre-sale, in-sale and after-sale, to provide customers with a perfect service experience.
● Our products have been sold all over the world and have gained a lot of recognition.
If you are also interested in other products from our company or have any questions, you can leave your contact information at any time and we will provide you with detailed product information and answer any questions. At the same time, you can also take a look at our other products: Relief Supplies Delivery Multirotor Drones、Hybrid Gasoline VTOL Fixed Wing Mapping Drone、120kg Electric Hexacopter Uav.
