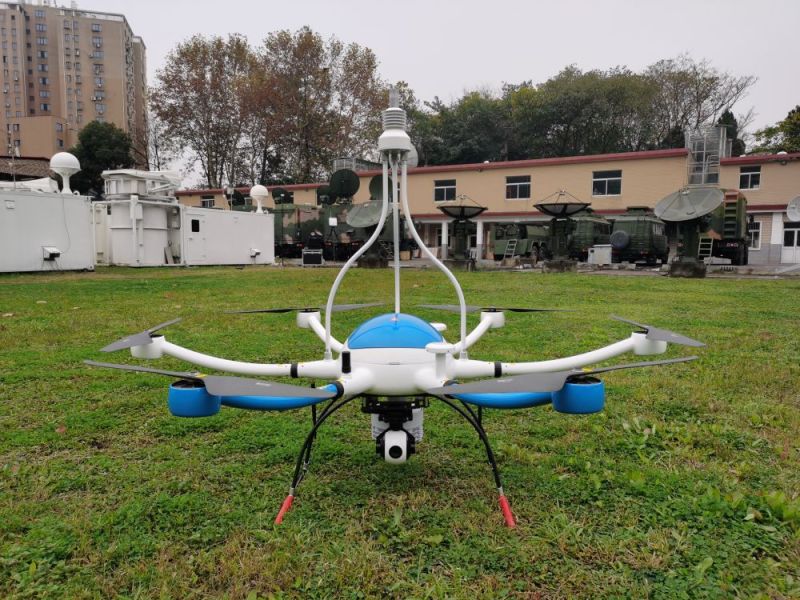

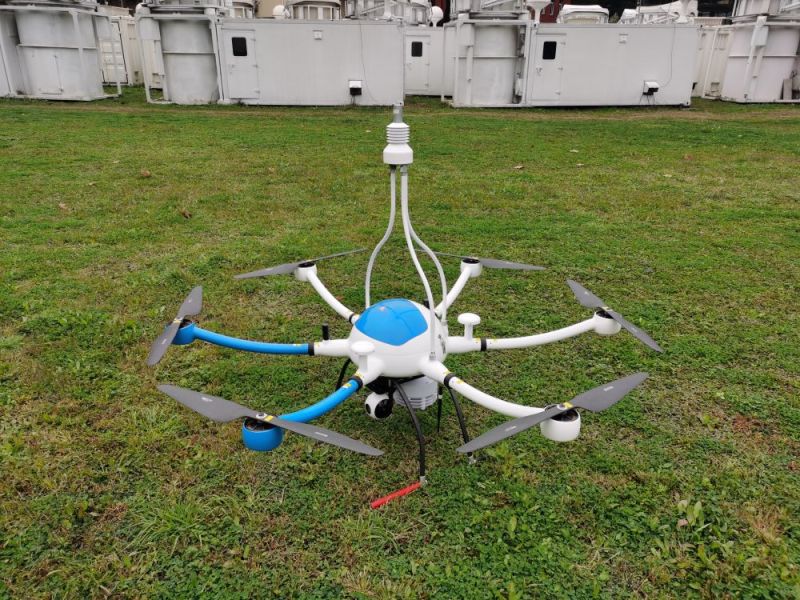

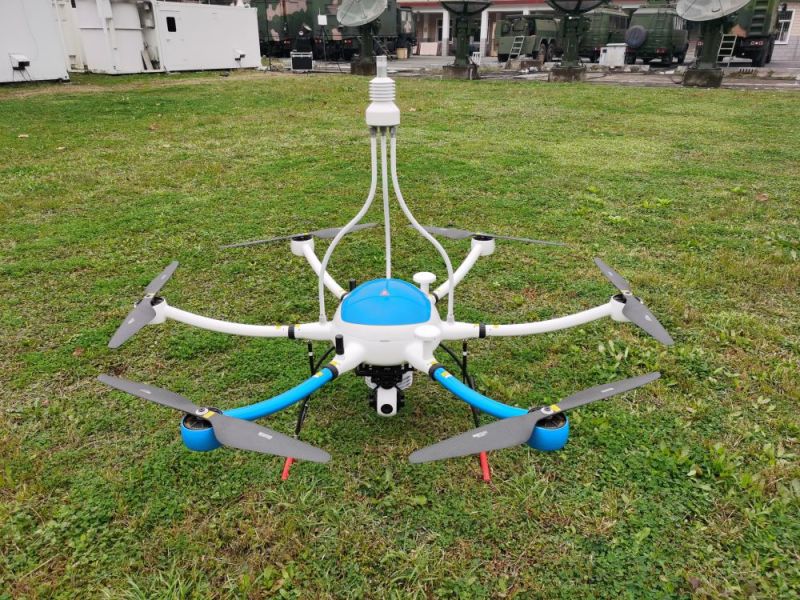

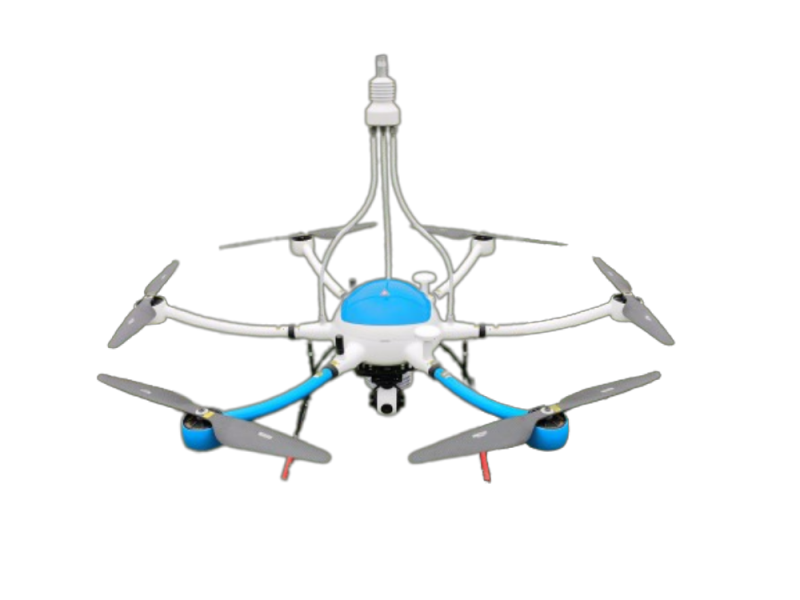

Meteorological Detection Hexacopter Drone
1. XH20E UAV is made of higher-grade carbon fiber, which greatly reduces the weight of the fuselage and doubles the hardness of ordinary materials. It also means that it can be disassembled quickly, which is convenient for transportation.
2. Our UAV is equipped with a powerful power system, which can greatly improve the flight efficiency of the UAV.
3. Equipped with emergency parachute design.
4. The UAV has built-in temperature, wind speed, wind direction, and air pressure sensors, which can collect data in all directions.
- Information
Introduction to Meteorological Detection Hexacopter Drone:
XH20E is a pure electric drone designed by our company. It has functions such as multi-functional mounting capacity and long battery life.

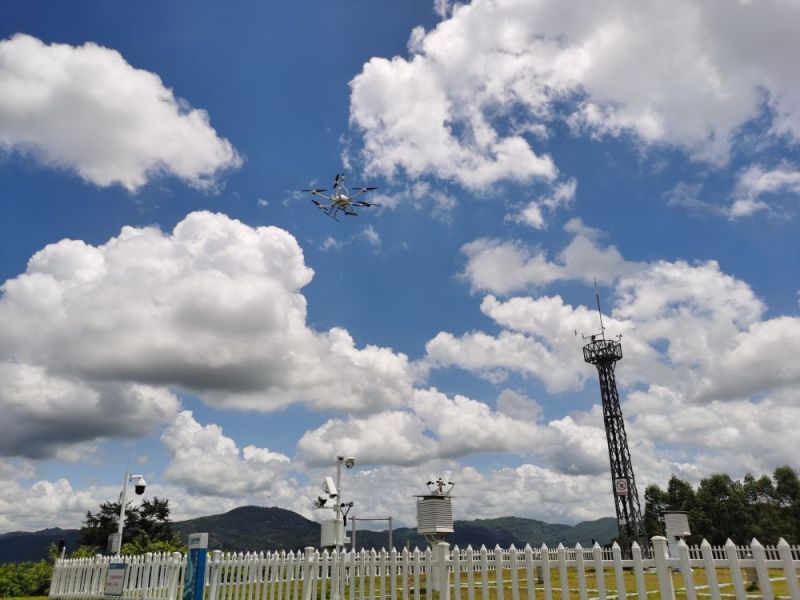

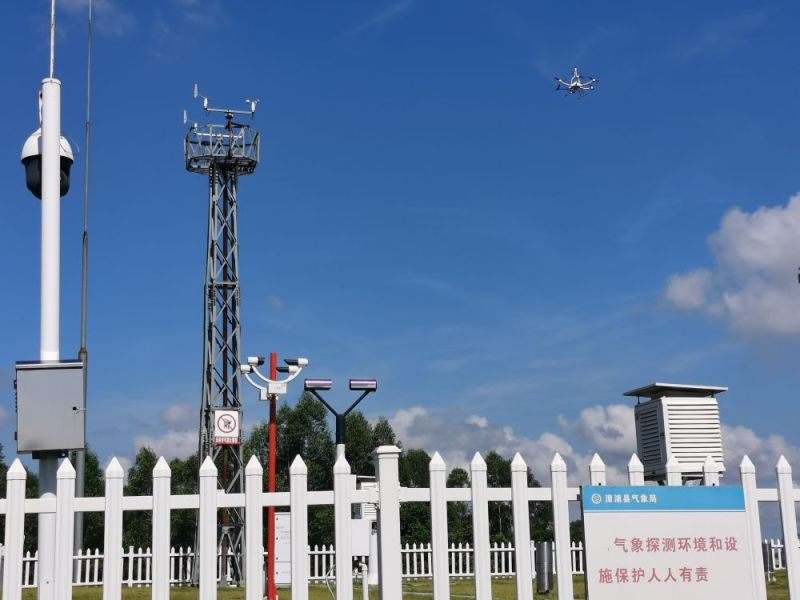

XH20E can carry a variety of payloads. After successful matching, it can enable tasks such as aerial video data acquisition and real-time transmission, three-dimensional mapping, emergency rescue, aerial payload deployment, broadcasting, meteorological monitoring, and environmental surveillance.
The UAV has a very long flight time and has stable characteristics. It can quickly adapt to harsh environments, has a high degree of integration, and is relatively easy to learn its operation. This product has autonomous flight capability, the operator only needs to set a flight route for it, and it can start autonomous cruise according to the established path, and it has multiple safety control strategies to ensure the safety of the flight engineering.
The main advantages of Meteorological Detection Hexacopter Drone are:
▲ The Meteorological Detection Hexacopter Drone offers customizable link and payload system configurations based on specific requirements.
▲ The Hexacopter UAV is outfitted with an industrial-grade flight control system, ensuring dependable and stable flights.
▲ Furthermore, the Hexacopter UAV is powered by high-energy-density lithium batteries, resulting in extended flight times.
The main technical parameters of Meteorological Detection Hexacopter Drone:
Performance / index | Parameters |
Number of rotors | Six rotors |
Symmetrical wheelbase | 1600mm |
Maximum takeoff weight | 20kg |
Maximum payload | 7kg |
Flight duration | 60min@2kg payload |
Maximum voyage | 35km |
Maximum leveling speed | 15m/s |
Maximum climbing speed | 5m/s |
Cruising speed | 10-12m/s |
Maximum rise limit | 3000m |
Maximum use altitude | ≤ 5000m |
Control distance | Hand-held integrated ground station: 10km (standard) |
Wind resistance grade | ≤ 12m/s (force 6 wind) |
Use environment | -10 ℃ + 45 ℃; prevent light rain |
