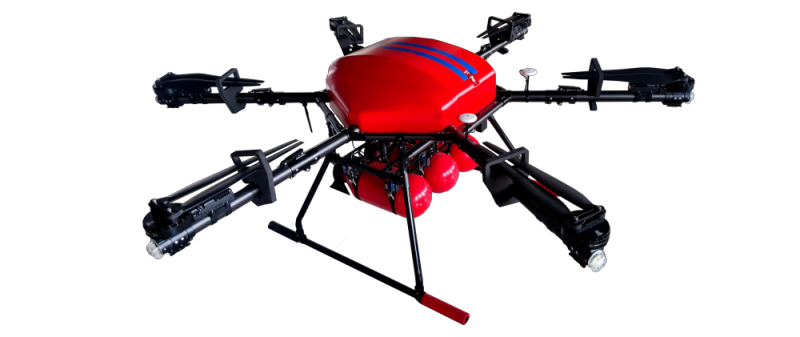

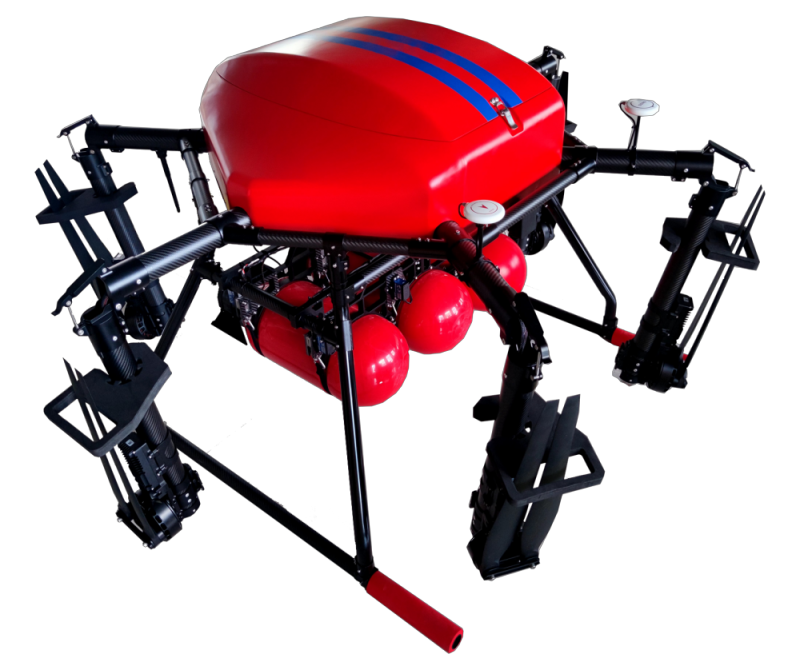

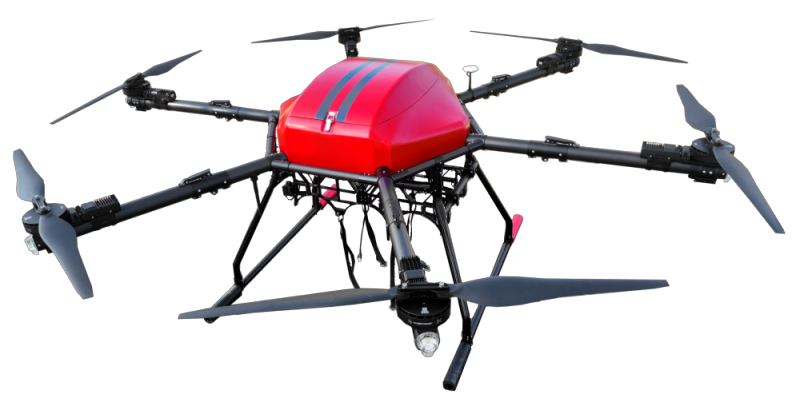

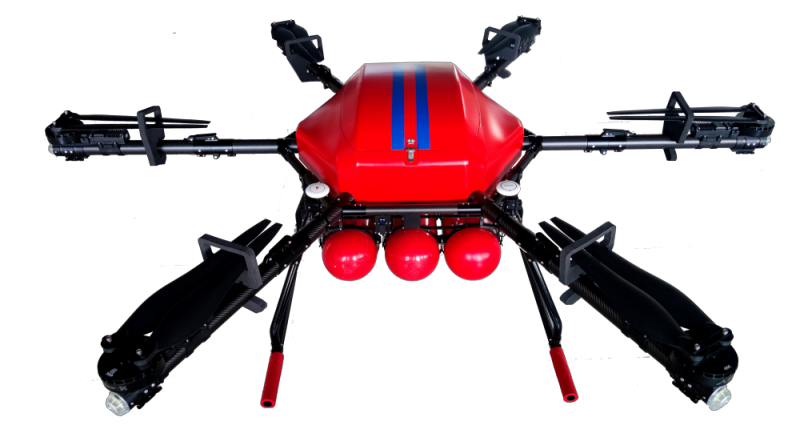

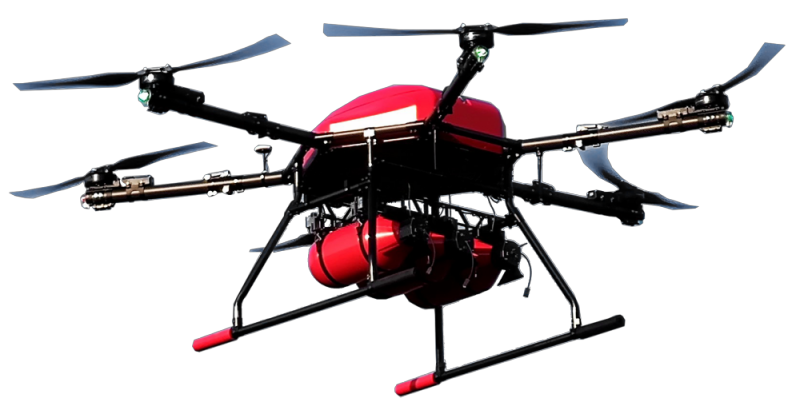

Forest Firefighting Drones
1. The frame of the quadcopter is made of carbon fiber, which effectively reduces the overall weight of the drone. Has excellent structural strength and is not susceptible to corrosion.
2. The quadcopter adopts new system technology, which greatly increases the flight efficiency.
3. The quadcopter has the characteristics of being foldable and light in weight, which is convenient to carry and easy to maintain.
- Information
Introduction to Forest Firefighting Drones:
Our company has autonomously developed the XH100E UAV platform, a robust, long-lasting, pure electric six-rotor UAV with versatile mounting capabilities.
Forest fire fighting drones are equipped with diverse payload options, enabling a wide array of tasks, including real-time aerial video data acquisition, three-dimensional mapping, emergency rescue, payload deployment, broadcasting, meteorological monitoring, and environmental surveillance.
The fire fighting drone system is characterized by its prolonged flight time, reliable performance, high dependability across various environments, streamlined integration, and user-friendly operation. It boasts autonomous take-off and landing capabilities, cruise mode, a dual redundant flight control system, and multiple safety protocols, ensuring secure and dependable flight operations.
Forest Firefighting Drones can be fitted with a timed blasting fire extinguishing bomb system, each covering an area of 15 square meters, significantly improving firefighting efficiency.
The main advantages of Forest Firefighting Drones are:
Firefighting drones offer flexible matching of links and payload systems based on specific requirements.
The forest firefighting drones are equipped with an industrial-grade flight control system, ensuring dependable and stable flights.
Additionally, these drones utilize high-energy-density lithium batteries, resulting in prolonged flight times.
The main technical parameters of Forest Firefighting Drones:
Performance / index. | Parameters. |
Number of rotors. | Six rotors. |
Symmetrical wheelbase. | 2300mm. |
Maximum takeoff weight. | 110kg. |
Maximum payload. | 40kg. |
Flight duration. | 30min@30kg payload. |
Maximum voyage. | 15km. |
Maximum leveling speed. | 13m/s. |
Maximum climbing speed. | 4m/s. |
Cruising speed. | 8-10m/s. |
Maximum rise limit. | 1000m. |
Maximum use altitude. | ≤ 5000m. |
Control distance. | Hand-held integrated ground station: 10km (standard). |
Wind resistance grade. | ≤ 12m/s (force 6 wind). |
Use environment | -10 ℃ + 45 ℃; prevent light rain |
