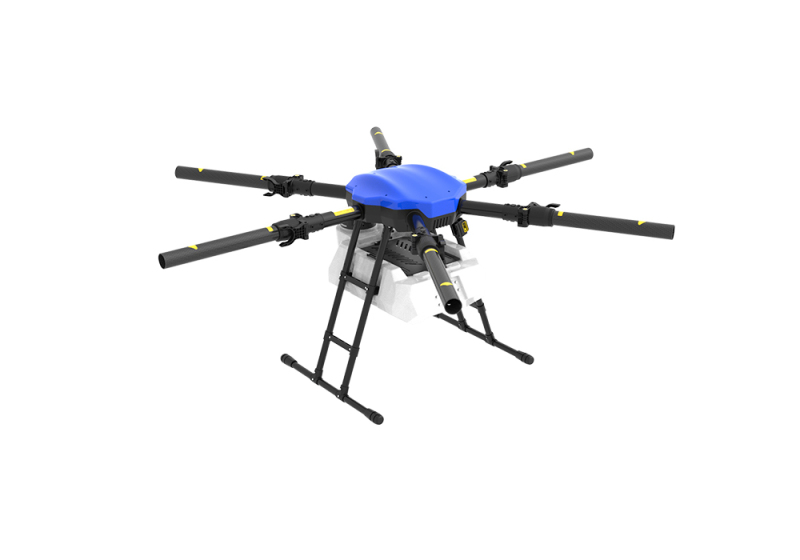

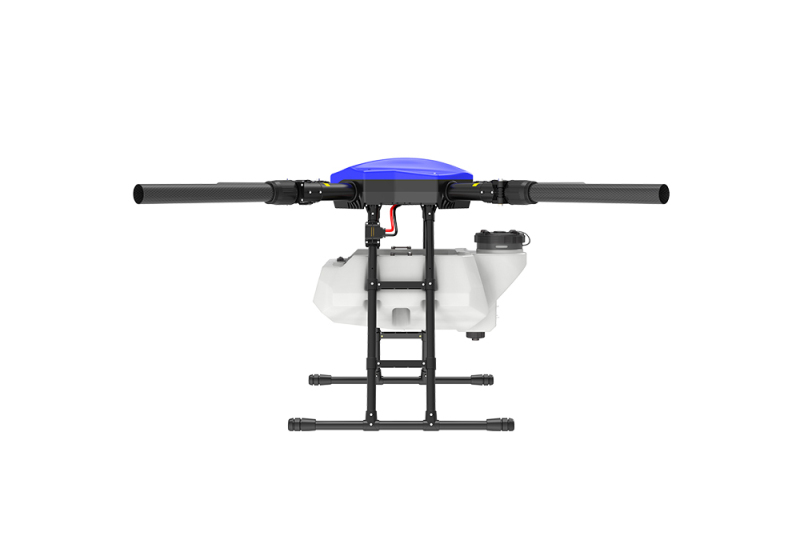

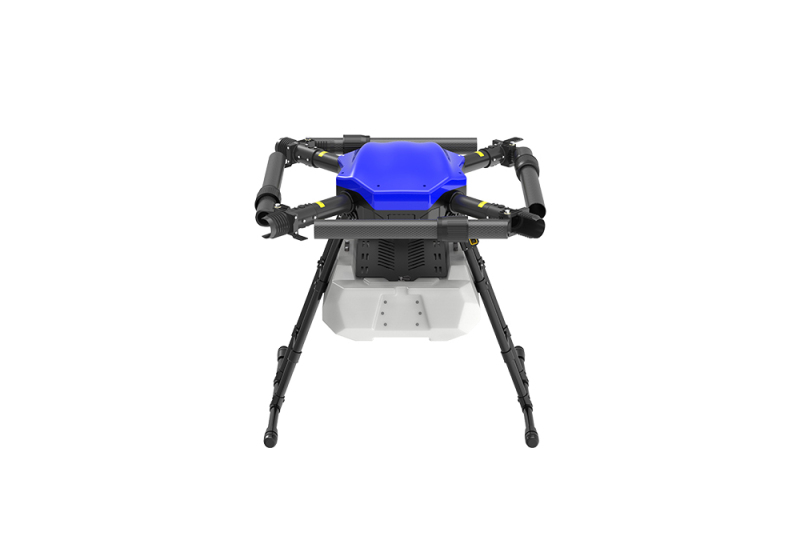

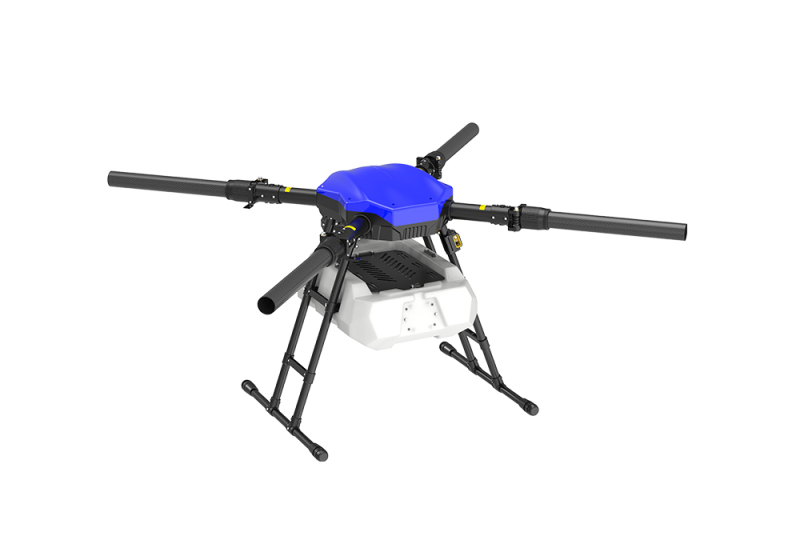

16L Agriculture Drone
1.16L Agriculture Drone accelerates the process of forming aerosol flow through air flow, increases the permeability of droplets to a certain extent, and saves labor and labor costs.
2.When using 16L Agriculture DroneL spraying, the operator can use the monitor on the PDA to monitor the spraying progress in real time. The better the density and uniformity of the spray per unit area, the better the control effect.
- Ling hang
- Shen zhen
- 15 days
- 100 sets per week
- Information
Overview of the introduction to 16L Agriculture Drone:
Agriculture spraying drone has the advantages of low operating height, less drift, hovering in the air, no need to take off and land at the airport, the downward airflow produced by the rotor is conducive to the penetration of crops, can effectively receive medicine on both the front and back of plant leaves, high control effect, long distance, spraying operators avoid exposure to danger, improve spraying operation and many other advantages.
In addition, electric unmanned helicopter spraying technology using spray spraying can save at least 50% of usage and 90% of water consumption. UAV spraying is 90 times higher than manual spraying, which will greatly reduce the resource cost.
Agriculture spraying drone has the advantages of small overall size, light weight, low depreciation rate, low labor cost per unit operation and easy maintenance.
Specification parameters of 16L Agriculture Drone:
Parameters | EV416 | EV616 |
Unfold size | 1000 x 1000 x 600mm | 1690 x 1470 x 600mm |
Folding size | 620 x 620 x 600mm | 850x 960 x 600mm |
Texture of material | Carbon fiber / nylon fiber / aluminum composite | Carbon fiber / nylon fiber / aluminum composite |
Wheelbase | 1400mm | 1600mm |
Arm diameter | 37 x 40mm | 37 x 40mm |
Weight | 6.5kg | 7.5kg |
Volume | 16L | 16L |
FC system | K++ / V7-AG | K++ / V7-AG |
Dynamic system | T10 / X9 | T8 / X8 |
Propeller | 34 in. | 34 in. |
Spraying system | 8L pressure drop nozzle | 5L pressure spray head |
Radar installation | Front obstacle avoidance / rear obstacle avoidance / imitation | Front obstacle avoidance / rear obstacle avoidance / imitation |
lithium battery | 14S 18000mAh | 14S 18000mAh |
Overall weight | 36kg | 38kg |
Application of 16L Agriculture Drone:
Precision agriculture drones can rise or fall according to the terrain, obstacle avoidance function, surrounding obstacle detection function colleague camera can be used for video recorder, which can transmit data in real time.
The powerful propulsion system allows drones to carry up to 16 liters of liquid (including fertilizer), so they can run longer and cover more farmland during a flight without the need for farmers to bring heavy batteries to the fields.
Our production equipment
Advanced automated manufacturing facilities bring you exquisite UAVs in a few days. We provide high efficiency production with guaranteed quality that you can trust.
