UAV EFI Electric Start Heavy Oil Engine 120ccm
1. UAV EFI Electric Start Heavy Oil Engine 120ccm is suitable for drones that fly for a long time.
2. The UAV EFI Electric Start Heavy Oil Engine 120ccm can accurately control fuel supply and improve combustion efficiency.
3. The UAV EFI Electric Start Heavy Oil Engine 120ccm is used in various types of UAV fields.
- Information
Introduction of UAV EFI Electric Start Heavy Oil Engine 120ccm:
The B2H120 EFI engine is an industrial-grade aviation heavy fuel engine. Compared with the traditional carburetor engine, the ECU (central control unit) controls the engine to automatically calibrate the fuel injection amount under different working conditions and altitudes, so as to promote fuel injection. Complete combustion reduces tail gas pollution and carbon deposits. UAV EFI Electric Start Heavy Oil Engine 120ccm is a high power drone motor. The UAV EFI electric start heavy oil engine is a motor used in drone specially designed for UAVs. It adopts EFI and electric start technology and can use heavy oil as fuel. Heavy fuel has abundant reserves and low usage costs, making it very suitable for long-duration drone flights. This product uses electronic injection technology for fuel injection and accurately controls the fuel supply through an electronic control system to improve combustion efficiency and power output. UAV EFI Electric Start Heavy Oil Engine 120ccm uses electric start technology to achieve quick engine start without using a traditional starter or hand crank, which improves engine reliability and starting efficiency.The ECU can automatically adjust the ignition angle, fuel injection volume, and idle air control according to the engine temperature and altitude sensor signals.
Advantages of UAV EFI Electric Start Heavy Oil Engine 120ccm:
1. Motor used in drone engine thermal management technology ensures that the engine is always in a suitable temperature range;
2. The motor used in drone has higher durability and reliability;
3. The high power drone motor has lower fuel consumption and meets the demand for long endurance.
4. Two horizontally opposed cylinders; electronic closed-loop control;
5. The motor used in drone has dual redundant speed sensors;
6. The motor used in drone can better adapt to the environment;
Technical parameters of UAV EFI Electric Start Heavy Oil Engine 120ccm:
Product number | B2H120 |
Displacement | 120cc |
idle speed | 1800rpm |
range of rotation | 1800rpm~8000rpm |
Operating temperature | -30℃~+55℃ |
use altitude | ≤4000m |
Maximum power | 11HP |
cooling method | air cooled |
EFI system weight
| ECU: 169g |
Oil pump: 213g | |
Harness: 166g | |
CDI: 159g | |
engine weight | Engine: 3620g |
size | 243*330.2*242.3mm |
fuel/lubricant | RP-3/2T fully synthetic engine oil |
Applicable models | fixed wing, vertical takeoff and landing fixed wing |
Lubrication ratio | 1:50 |
Recommended paddle | 24*18, 26*12, 26*14, 28*12 |

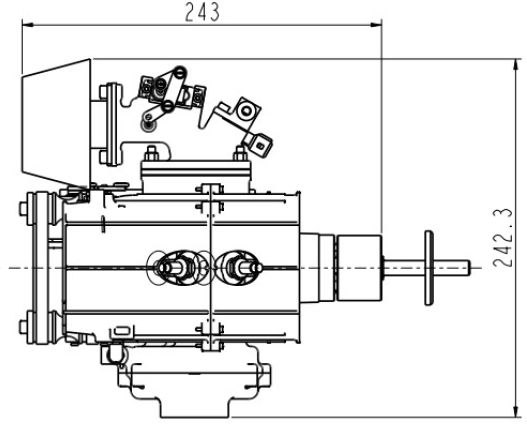

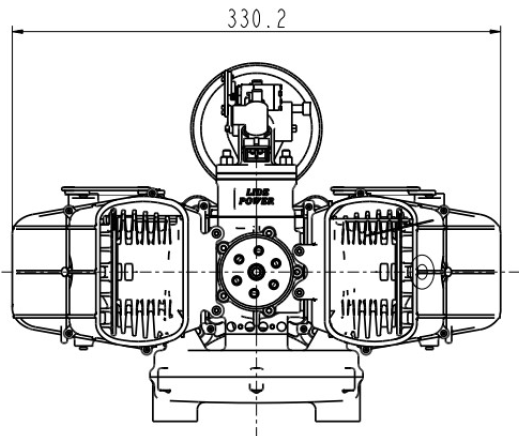

Engineering dimension drawing of UAV EFI Electric Start Heavy Oil Engine 120ccm:
