60A-12S Electronic Governor
1. The advanced circuit design of uav equipment ensures stable performance
2. Highly sensitive response of uav equipment to load and demand changes
3. uav equipment is compatible with a series of voltage input, with flexibility
- Information
Product Introduction: 60A-12S Electronic Governor:
FLAME 60A 12S is an industrial-grade avionics governor, specially designed for multi-rotor aircraft. It has the characteristics of good stability, small size and strong adaptability. It provides a reliable and stable speed control system for UAVs.UAV Electronic Governor is a device used to control the speed of drone motors. The UAV engine electronic governor consists of a microcontroller and some electronic components, which can receive instructions from the remote controller or flight controller and convert them into control signals for motor speed. The main function of the UAV Electronic Governor is to adjust the motor speed to control the flight attitude and movement of the UAV according to the instructions of the flight control system. By changing the speed of the motor, the drone can perform various flight actions such as rising, falling, forward, backward, left and right translation, rotation, etc.
Advantages of 60A-12S Electronic Governor:

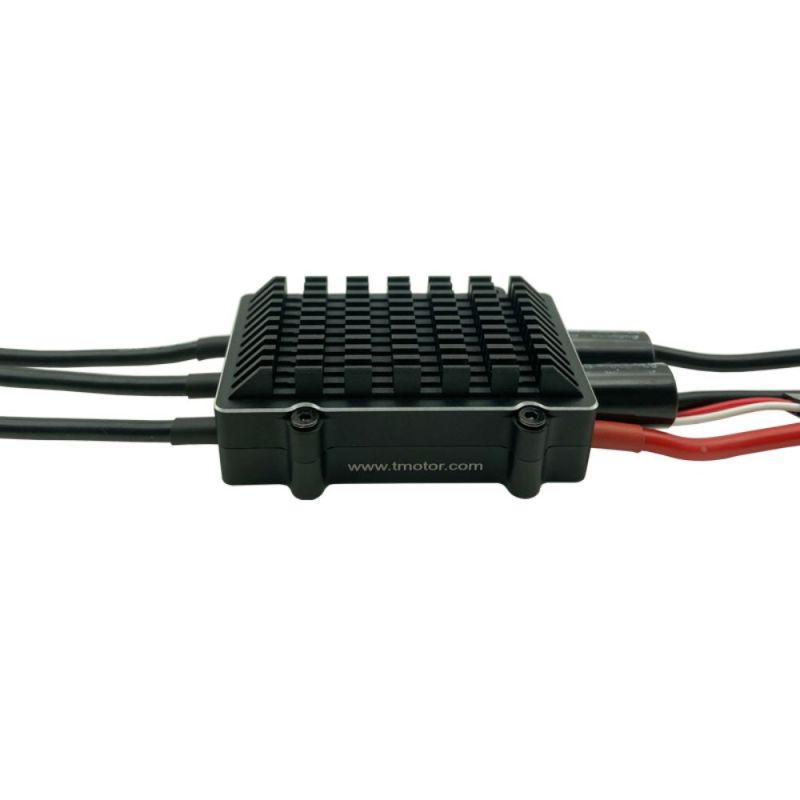

UAV engine electronic governor layered installation structure, efficient heat dissipation;
Uav equipment has multiple security protection functions;
UAV Electronic Governor is compatible with most brushless motors;
UAV Electronic Governor has excellent stability.
The UAV Electronic Governor is capable of handling currents up to 60 amps, making it suitable for large drones or applications requiring high power output.
UAV engine electronic governor uses efficient MOSFET technology to minimize energy loss and improve motor efficiency.
Technical parameters of 60A-12S electronic governor:
project | Specifications |
product name | FLAME-60A-12S |
ESC type | Multi-rotor ESC |
BEC output | none |
Voltage | 6-12S(24V-52V) |
Dimensions (mm) | 66.5*38.5*17.7 |
weight | 73.5g |
continuous current | 60A |
Instantaneous current (10s) | 80A |

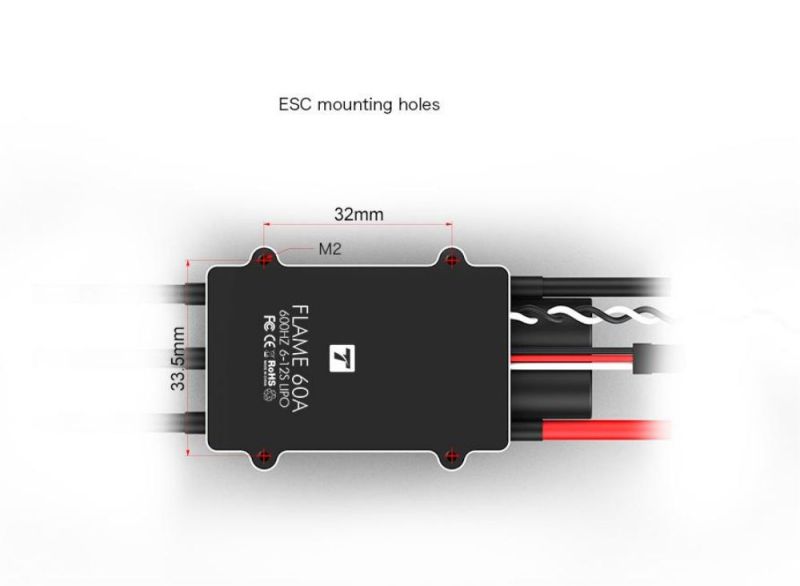

Installation dimensions of 60A-12S electronic governor:
