UAV EFI Electric Start Gasoline Engine 70ccm

1. UAV EFI Electric Start Gasoline Engine 70ccm has high efficiency and can improve combustion efficiency and power output.
2. UAV EFI Electric Start Gasoline Engine 70ccm can help extend the battery life of the drone.
3. UAV EFI Electric Start Gasoline Engine 70ccm can reduce noise and provide lower noise levels.

  • Information

Product information of UAV EFI Electric Start Gasoline Engine 70ccm:

Drone gas engine is an advanced engine technology that combines the advantages of drone and electronic injection technology. It uses an electronic injection system to control fuel injection and an electric starting system to start the engine. The B2G70 EFI engine is an industrial-grade aviation gasoline engine. Compared with traditional carburetor engines, the ECU (central control unit) controls the engine to automatically calibrate the fuel injection amount under different working conditions and altitudes, thereby promoting fuel injection. Complete combustion, reducing exhaust pollution and carbon deposits. At the same time, the ECU can automatically adjust the ignition angle, fuel injection volume and idle air control based on engine temperature and altitude sensor signals. The drone gas engine can be applied to low powered tethered UAVs. The UAV EFI Electric Start Gasoline Engine 70ccm has the characteristics of high efficiency, low emissions, low noise, fast start, high reliability and easy maintenance. It is suitable for drones and other applications that require high performance and reliability application areas.

drone gas engine

Advantages of UAV EFI Electric Start Gasoline Engine 70ccm:

1. Horizontally opposed two cylinders;

2. Electronic closed-loop control for low powered tethered uav;

3. The low powered tethered uav has dual redundant speed sensors;

4. UAV hybrid engine can better adapt to the environment;

5. The uav hybrid engine has lower fuel consumption and meets the demand for long flight time.

Main technical parameters of UAV EFI Electric Start Gasoline Engine 70ccm:

Product number

B2G70

Displacement

70cc

idle speed

1800rpm

range of rotation

1800rpm~8500rpm

Operating temperature

-30℃~+55℃

use altitude

≤4000m

Maximum power

7 HP

cooling method

air cooled

EFI system weight







ECU: 169g

Oil pump: 213g

Harness: 166g

CDI: 159g

engine weight

Engine: 2200g

size

173*262.5*223mm

fuel/lubricant

Above 92#/2T fully synthetic engine oil

Applicable models

fixed wing, vertical takeoff and landing fixed wing

Lubrication ratio

1:40

Recommended paddle

22*12, 22*14, 24*10, 24*12

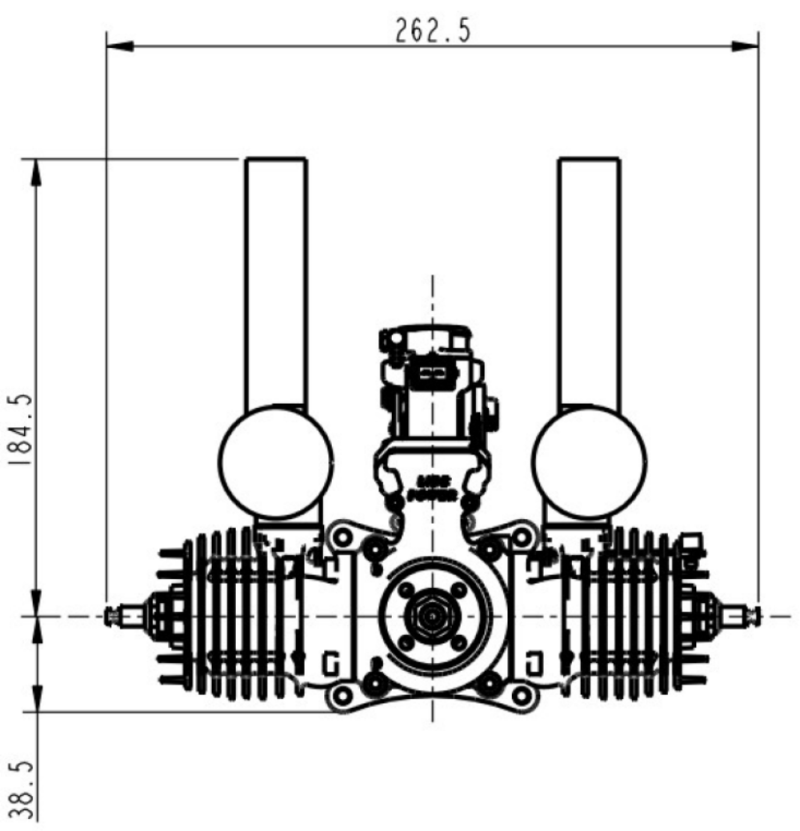

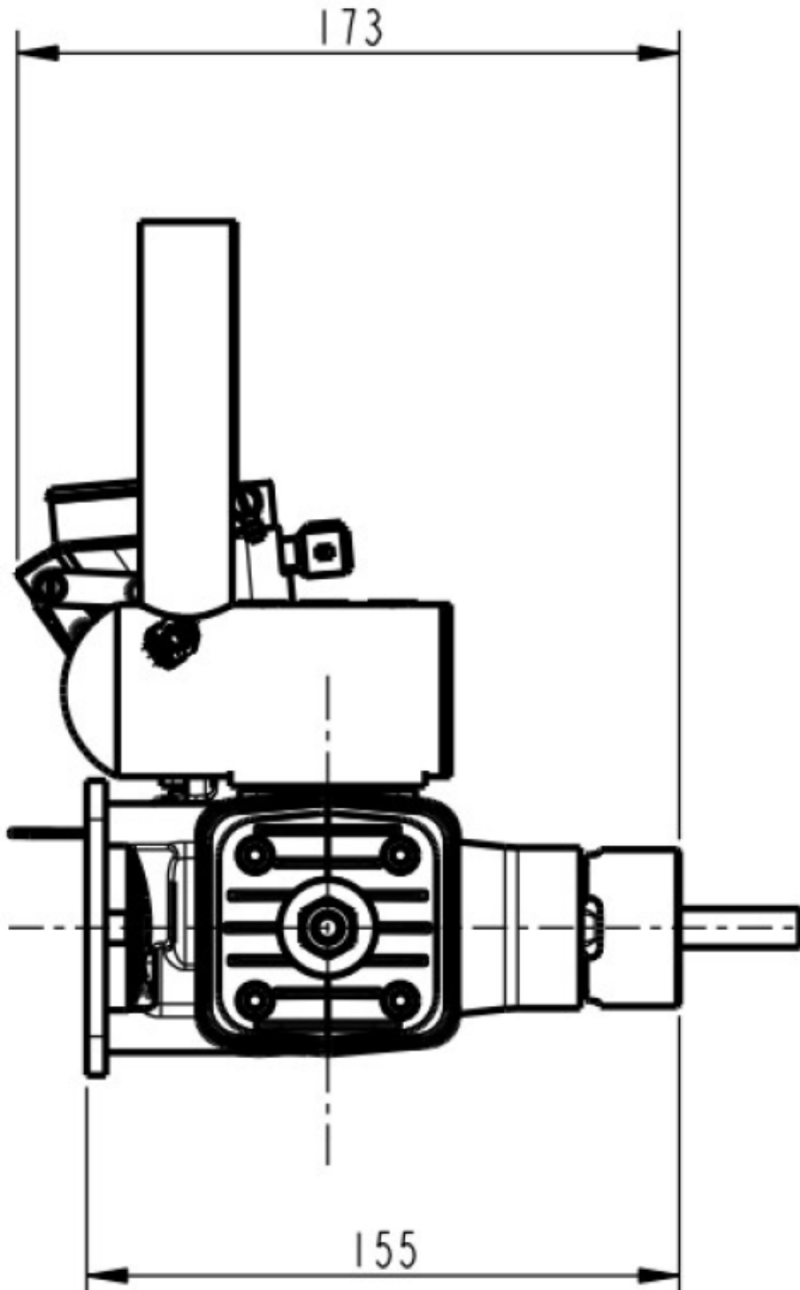

Engineering dimension drawing of UAV EFI Electric Start Gasoline Engine 70ccm:

uav hybrid engineHybrid drone
