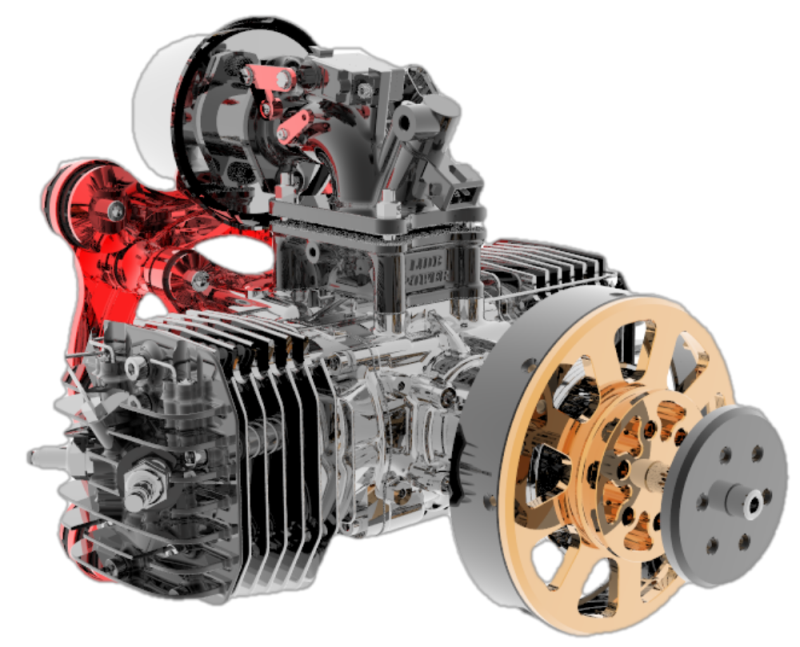

UAV EFI Electric Start Gasoline Engine 170ccm
1. The UAV EFI Electric Start Gasoline Engine 170ccm has high output power and can provide good flight performance.
2. The UAV EFI Electric Start Gasoline Engine 170ccm has high combustion efficiency and can fully burn materials.
3. The UAV EFI Electric Start Gasoline Engine 170ccm adopts a traditional internal combustion structure and is easy to maintain.
- Information
Introduction of UAV EFI electric start gasoline engine 170ccm:
The B2G170 EFI engine is an industrial-grade aviation gasoline engine. Compared with the traditional carburetor engine, the ECU (central control unit) controls the engine to automatically calibrate the fuel injection amount under different working conditions and altitudes, so as to promote fuel injection. Complete combustion reduces tail gas pollution and carbon deposits. The EFI engine has high performance features such as high power, fuel saving, low noise, not easy to stall, and one-time ignition. At the same time, the ECU can automatically adjust the ignition angle, fuel injection volume, and idle air control according to the engine temperature and altitude sensor signals.
Advantages of UAV EFI electric start gasoline engine 170ccm:
1. Horizontally opposed two cylinders;
2. UAV EFI Electric Start Gasoline Engine has electronic closed-loop control;
3. UAV EFI Electric Start Gasoline Engine has dual redundant speed sensors;
4. UAV motor can better adapt to the environment;
5. The uav motor has lower fuel consumption and meets the demand for long flight time.
Main technical parameters of UAV EFI electric start gasoline engine 170ccm:
Product number | B2G170 |
Displacement | 170cc |
idle speed | 1800rpm |
range of rotation | 1800rpm~8500rpm |
Operating temperature | -30℃~+55℃ |
use altitude | ≤4000m |
Maximum power | 16HP |
cooling method | air cooled |
EFI system weight
| ECU: 169g |
Oil pump: 213g | |
Harness: 166g | |
CDI: 159g | |
engine weight | Engine: 4153g |

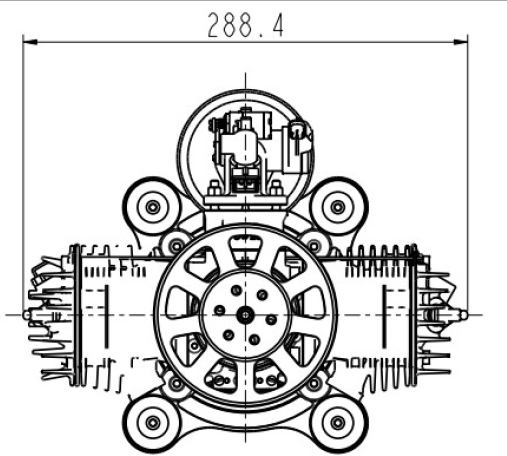

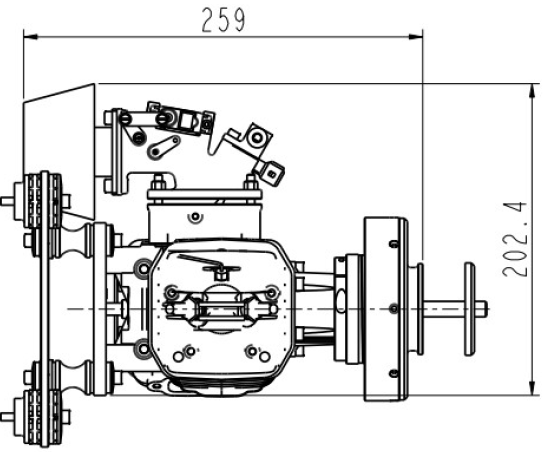

size | 259*288.4*202.4mm |
fuel/lubricant | Above 92#/2T fully synthetic engine oil |
Applicable models | fixed wing, vertical takeoff and landing fixed wing |
Lubrication ratio | 1:40 |
Recommended paddle | 26*18, 28*14, 28*16, 30*10, 30*12 |
、
