Fixed wing oil powered UAV platform
1. The fixed wing oil powered UAV platform has a long flight time and a high flight speed.
2. Fixed wing oil powered UAV platform has a large load capacity.
3. Fixed wing oil powered UAV platform is highly automated.
- Information

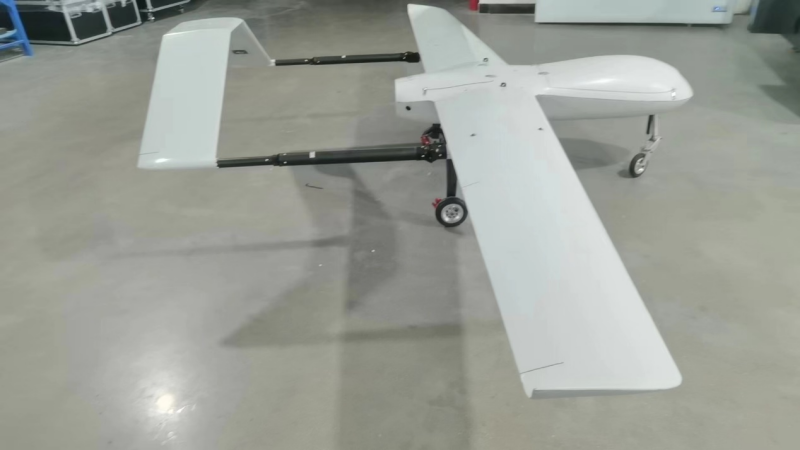

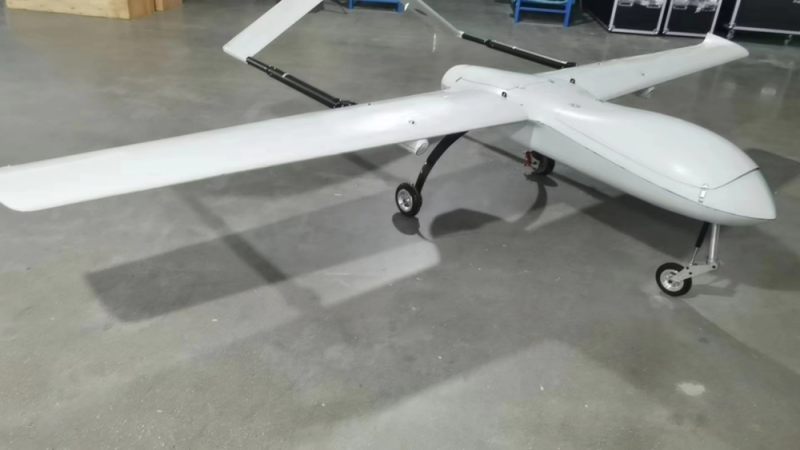

Product introduction of Fixed wing oil powered UAV Platform:
A fixed-wing UAV is a UAV with a fixed-wing structure, similar to a traditional aircraft. It consists of components such as wings, fuselage, and empennage, and has a fixed wing shape to generate lift and fly in the air.Oil powered hybrid drone is a drone that operates using an internal combustion engine as its power source. It uses a fixed-wing structure, similar to a traditional aircraft, with components such as wings, fuselage, and empennage. The internal combustion engine of an oil-powered fixed-wing UAV can use a variety of fuels, such as gasoline, diesel, or aviation kerosene. Hybrid drone also has a wide range of applications in many industries, such as environmental monitoring, resource exploration, disaster response and rescue, agriculture and forestry management, etc. Whether it is aerial photography, geological exploration, power inspection, logistics and transportation, or Hybrid Fixed Wing UAV Platform, it can do the job very well.
The product advantages of Fixed wing oil powered UAV platform:
1. Long flight time: The internal combustion engines of oil powered hybrid drones can use a variety of fuels, allowing them to provide long flight times, suitable for missions that require continuous monitoring, reconnaissance, and search. At the same time, oil-powered fixed-wing UAVs usually have a high flight speed, can quickly reach the destination and quickly cover a large area.
2. Increased Load: Due to the stability of the fixed-wing structure and the larger fuselage volume, hybrid drones can usually carry larger loads. This makes them widely used in fields such as military reconnaissance, resource surveying, and environmental monitoring. Oil-powered fixed-wing UAVs can also achieve highly autonomous flight and improve work efficiency.
3. Strong communication capability: The Hybrid Fixed Wing UAV Platform can maintain long-distance real-time data transmission with the ground command center. This allows them to perform missions over long distances and provide timely feedback to the command center.
4. Wide range of applications: The Hybrid Fixed Wing UAV Platform has a wide range of applications in various fields.
Product technical parameters of Fixed wing oil powered UAV platform:
Performance | parameter |
fuselage length | 2.5m |
span | 3.8m |
maximum take-off weight | 55kg |
maximum payload | 25kg |
battery life | 3h@15kg payload, 5h@10kg payload, 10h@3kg payload |
flight radius | 200-400km (depending on fuel load) |
Maximum control distance | Remote control (manual control): 1km Ground station control (depending on the equipped data transmission distance): standard 30km |
Maximum speed | 150km/h |
cruise speed | 90-110km/h |
Maximum fuel capacity | 12L/20L (optional) |
Maximum use altitude | 6500m |
Maximum wind resistance | 12m/s (level 6 wind) |
use environment | -10℃+45℃; light rain proof |
engine | 120cc EFI inspired one |
Lift/Lower Power Battery | 4*14000mAh-6S lithium battery |
Take-off and landing mode | VTOL |
GPS positioning system | Single point GPS positioning/RTK direction finding |
shipping size | Length, width and height: 1860*840*830mm |
With 20 years experience in UAV R&D, LHUAV promised qualified products at the beginning. Rich experience has led to the careful design and development of every part of the UAV.
Good training and orderly management form an efficient production line, with a large number of experienced workers providing rapid assembly of drones.
Shenyang Linghang Aviation Science&Technonlogy Co., Ltd. (" LHTechUAV") was established on March 20, 2018 in Sanhao Street, Heping District, Shenyang City, Liaoning Province. It is located in one of the first ten special commercial streets in China, which is a distribution center for computer and IT products in Liaoning Province and the whole Northeast region. The company focuses on the application of UAVs, unmanned aerial equipment, light sport aircraft and other low-altitude aerial vehicles and their components composite materials research and development, production and sales, for general aviation equipment, military and civilian unmanned aerial equipment to provide one-stop R & D, design, manufacturing, technical support, etc. to provide a full range of system solutions.
