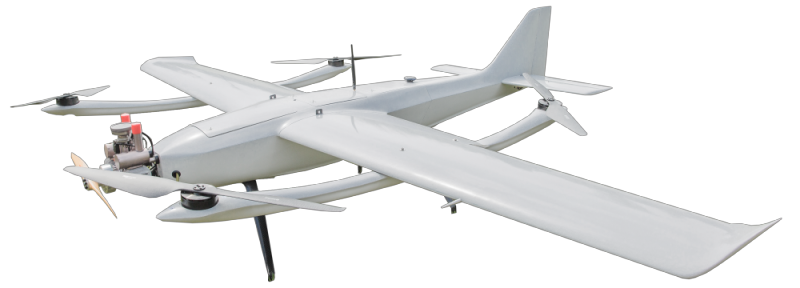

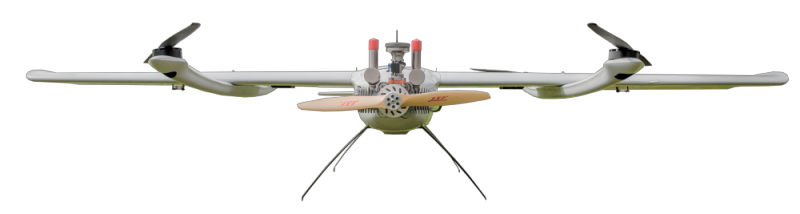

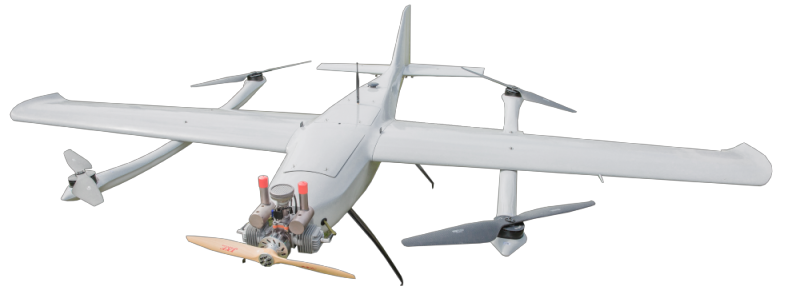

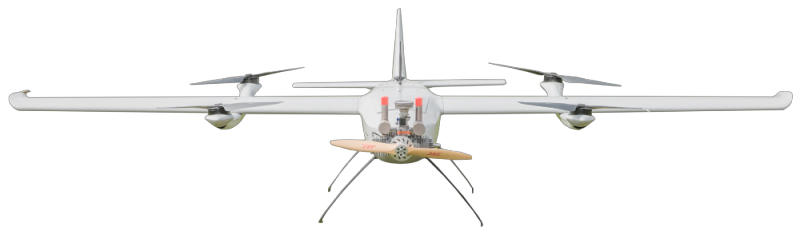

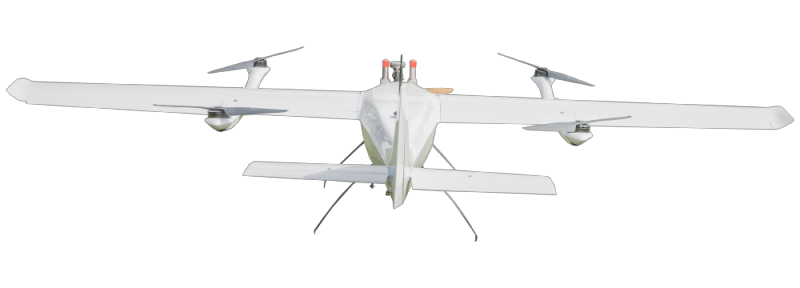

40kg Oil Powered Vertical Lift Fixed Wing (VTOL) UAV
1. The 40kg Oil Powered Vertical Lift Fixed Wing (VTOL) UAV can carry an extremely large cargo warehouse, which can greatly enhance the scalability of hybrid vertical take-off and landing UAVs.
2. The 40kg Oil Powered Vertical Lift Fixed Wing (VTOL) UAV adopts a modular design and can be quickly disassembled.
3. The 40kg Oil Powered Vertical Lift Fixed Wing (VTOL) UAV adopts a composite shell for strength.
- Information
Product introduction of 40kg Oil Powered Vertical Lift Fixed Wing (VTOL) UAV:
40kg oil powered vertical lift fixed wing (VTOL) UAV is an oil-powered long-endurance composite wing vertical take-off and landing UAV independently developed by our company. It uses composite materials to effectively prevent damage to the aircraft during flight destruction of the body. The 40 kg heavy VTOL fixed wing UAV relies on the characteristics of a multi-rotor combined with a fixed-wing structure, which effectively solves the problem of fixed-wing UAVs being unable to take off and land vertically and increase their adaptability to the environment. The 40 kg heavy VTOL fixed wing UAV can be equipped with some infrared sensing equipment for urban security monitoring and can also conduct power inspections in some remote areas. This drone has a smaller payload, it is easier to maintain. If you have the needs of aerial photography, agricultural plant protection, or performances, then you can buy this drone.
The product advantages of 40kg Oil Powered Vertical Lift Fixed Wing (VTOL) UAV:
1. The 40 kg heavy VTOL fixed wing UAV is a type of hybrid VTOL UAV that is less dependent on the environment. It can enter a fast take-off state at any site and respond quickly. It is very suitable for handling emergency types of work.
2. This drone can be used as Vertical take-off and landing drones for surveying, and can be used in geographic surveying and mapping.
3. Compared with UAVs with large payload capacity, the 40 kg heavy VTOL fixed wing UAV is smaller, lighter, and more flexible.
4. In terms of cost-effectiveness, the 40 kg heavy VTOL fixed wing UAV is relatively more economical. Due to their small size, maintenance costs are relatively low.
5. As a common UAV structure, Fixed Wing UAV is also one of a main product of our company for many years. We have devoted a lot of experience and time in terms of design and material selection. So you won't have to worry about its quality.
Main technical parameters of 40kg Oil Powered Vertical Lift Fixed Wing (VTOL) UAV:
Performance / index. | Parameters. |
Fuselage length. | 2600mm. |
Wingspan. | 3300m. |
Maximum takeoff weight. | 40kg. |
Maximum payload. | 10kg. |
Flight duration. | 240min@5kg payload. |
Maximum voyage. | 400km. |
Cruising speed. | 100-120km/h. |
Stall speed. | 80km/h. |
Maximum rise limit. | 3000m. |
Maximum use altitude. | ≤ 5000m. |
Control distance. | Remote control: 1km. |
Wind resistance grade. | Ground station: 30km (standard). |
Use environment. | ≤ 12m/s (force 6 wind). |
Engine | -10 ℃ + 45 ℃; prevent light rain. |
The company's core technical team has more than 10 years of product development, production and application experience in flight control systems, software platform development, UAV and civil aircraft design, composite material production, industry application system solutions and other technical fields, and has been deeply involved in the R & D, design and manufacture of national ARJ regional airliners, C919 and C929 commercial aircraft. And participate in the Canadian Bombardier C series, Q400, MA700 and other commercial aircraft technology research and development and manufacturing, has a large number of professional technical reserves and industry UAV commercial application cases.
