180kg Oil Powered Vertical Lift Fixed Wing (VTOL) UAV
1. The 180kg Oil Powered Vertical Lift Fixed Wing (VTOL) UAV has diverse load capacities.
2. The 180kg Oil Powered Vertical Lift Fixed Wing (VTOL) UAV is equipped with various equipment to obtain high-precision data in real-time.
3.The 180kg Oil Powered Vertical Lift Fixed Wing (VTOL) UAV is a UAV that uses an oil-electric hybrid power system.
- Information
Product introduction of 180kg Oil Powered Vertical Lift Fixed Wing (VTOL) UAV:

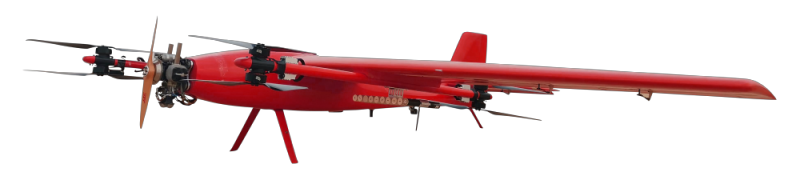

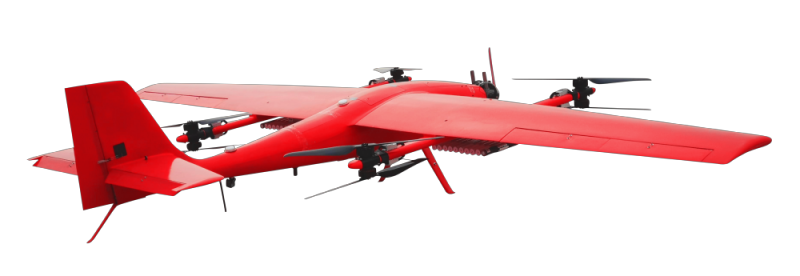

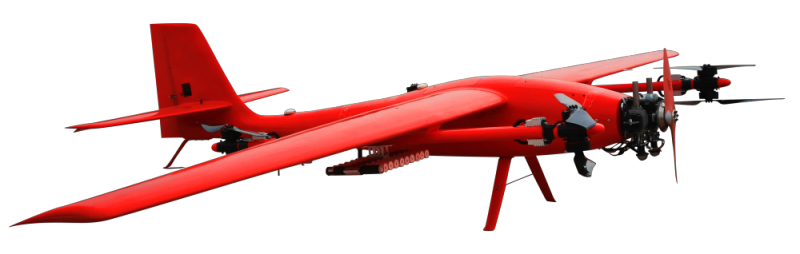

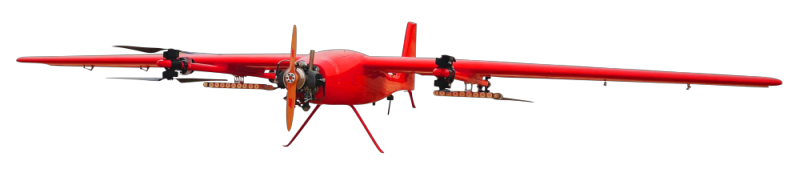

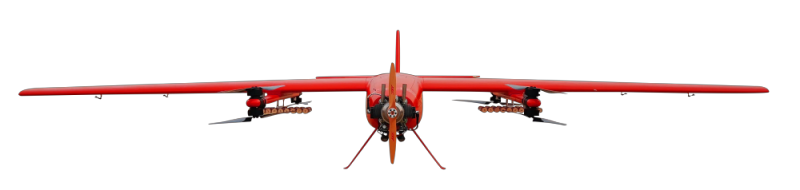

The VF180P unmanned aerial vehicle platform is an oil-powered long-endurance compound wing vertical take-off and landing unmanned aerial vehicle, was independently developed by our company. The hybrid drone aircraft combines a traditional fuel engine and generator with a hybrid dual power. The hybrid electric drone is powerful and can achieve high endurance. The flight control design of the 180 kg oil powered drone has also been further optimized through continuous updates. The multi-rotor can rotate at higher speeds and has better wind resistance. The 180 kg oil powered drone also supports autonomous navigation, does not allow manual intervention during vertical takeoff and landing, and automatic tracking and circling.The hybrid electric drone has a payload of 180 kg and can achieve a variety of flight missions.
Product advantages of 180kg Oil Powered Vertical Lift Fixed Wing (VTOL) UAV:
1. The hybrid drone aircraft operates using an oil-driven hybrid engine, which can provide a longer working time for the drone and extend the flight route of the drone.
2. The hybrid electric drone has a load capacity of up to 180kg, and there are a variety of mission equipment to choose from.
3. The hybrid drone aircraft can be operated by remote control or preset flight routes, so that operators can perform remote operations in a safe place.
4. Skyfront UAV can load equipment to collect and transmit data, so that operators can obtain and process data in a timely manner.
The main specification parameters of 180kg oil powered vertical lift fixed wing (VTOL) UAV:
Performance / index. | Parameters. |
Fuselage length. | 3350mm. |
Wingspan. | 6500m. |
Maximum takeoff weight. | 180kg. |
Maximum payload. | 40kg. |
Flight duration. | 240min@10kg payload. |
Maximum voyage. | 500km. |
Cruising speed. | 100-120km/h. |
Stall speed. | 90km/h. |
Maximum rise limit. | 3000m. |
Maximum use altitude. | ≤ 5000m. |
Control distance. | Remote control: 1km. |
Wind resistance grade. | Ground station: 30km (standard). |
Use environment. | ≤ 12m/s (force 6 wind). |
Engine | -10 ℃ + 45 ℃; prevent light rain. |
