Fixed Wing Drone Brushless Motor
1. Drone Brushless DC Motor provides maximum power for air equipment operation.
2. The Drone Brushless DC Motor is made of high-quality materials and is very wear-resistant.
3. The Drone Brushless DC Motor has a long service life, so it is very reliable.
- Information
Introduction of Fixed Wing Drone Brushless Motor:

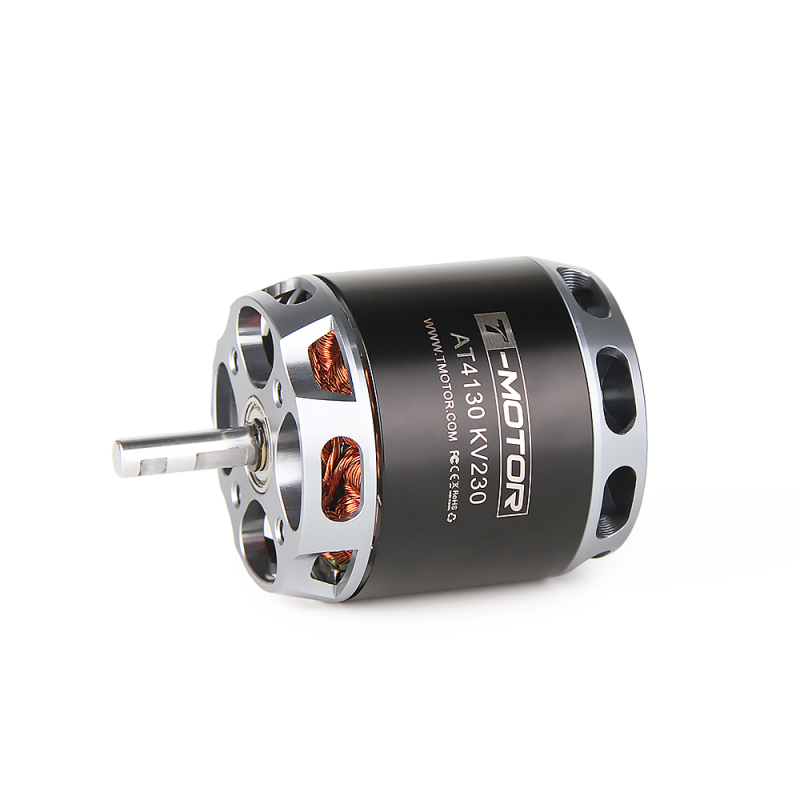

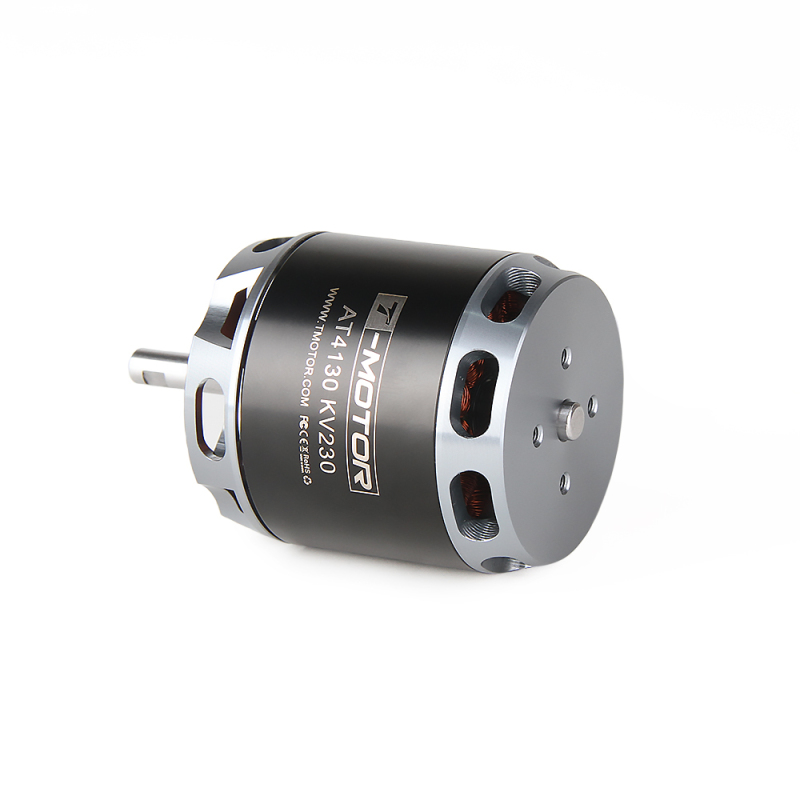

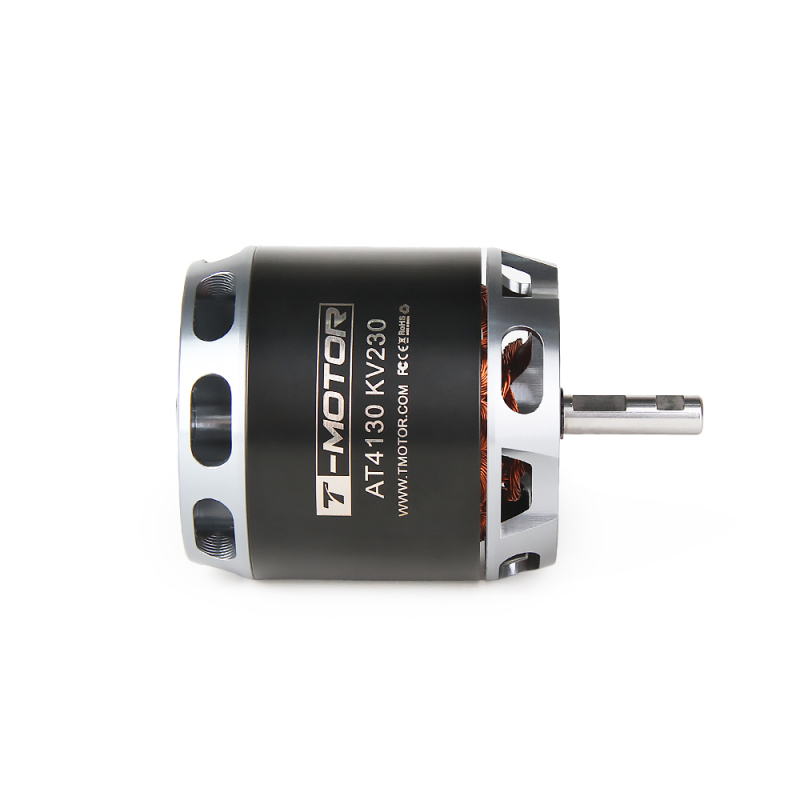

AT4130-KV230 is an excellent fixed-wing brushless motor, with high-temperature-resistant arc-shaped magnets, military-grade high-temperature-resistant enameled wires and custom imported bearings, and a built-in high-efficiency cooling system to ensure the normal operation of the motor in high-intensity working environments.The brushless fixed motor of a drone is a motor used to drive the rotor of a drone. Compared with brushed motors, brushless motors do not have the carbon brushes and collector rings in traditional brushed motors, so they have higher efficiency and longer life. Compared with brushed motors, Drone Brushless DC Motor does not have the carbon brushes and collector rings in traditional brushed motors, so it has higher efficiency and longer life. Drone electric motor usually consists of motor housing, rotor, coil and magnet. Its working principle is to use the magnetic field generated by the current passing through the coil to interact with the magnetic field generated by the magnet, thereby generating torque to drive the rotor to rotate. The rotor of a brushless motor is composed of multiple magnets. The direction and size of the current are controlled by electronic regulation, so that the motor can rotate at a predetermined speed and direction.
Product advantages of Fixed Wing Drone Brushless Motor:
1. Drone electric motor has excellent structural design and efficient heat dissipation.
2. Drone electric motor has double insurance design;
3. The ultra-light weight of the Drone electric motor reduces the weight by 15% for the same pulling force.
4. Excellent and stable performance of Drone electric motor.
5.Drone Brushless DC Motor has higher efficiency than traditional brush motors. It uses brushless motor technology and accurately controls the current through an electronic controller, reducing energy loss and wear and improving energy utilization.
Specifications of Fixed Wing Drone Brushless Motor:
project | Specifications |
product name | AT4130-KV230 |
motor type | fixed wing motor |
Single axis recommended pull force | 1.2~2kg |
Single axis maximum pulling force | 7.6kg |
KV value | 100 |
Operating Voltage | 12S |
Dimensions (mm) | 50*79 |
weight | 408g |
Maximum power (180S) | 2500W |
Maximum current (180s) | 60A |
Internal resistance between phases | 60mΩ |
Recommended paddle | 16~17 inches |
Dimension drawing of Fixed wing drone brushless motor:
Test data of Drone Brushless DC Motor:
