Efficient Brushless Motor For Multi Rotor UAV
1. Efficient Brushless Motor For Multi Rotor UAV is designed to be lightweight and compact, making it easy to transport and control.
2. Efficient Brushless Motor For Multi Rotor UAV can provide clear vision and accurate data analysis.
3. Efficient Brushless Motor For Multi Rotor UAV is suitable for long-distance flights and missions.
- Information
Product introduction of Efficient Brushless Motor For Multi Rotor UAV:

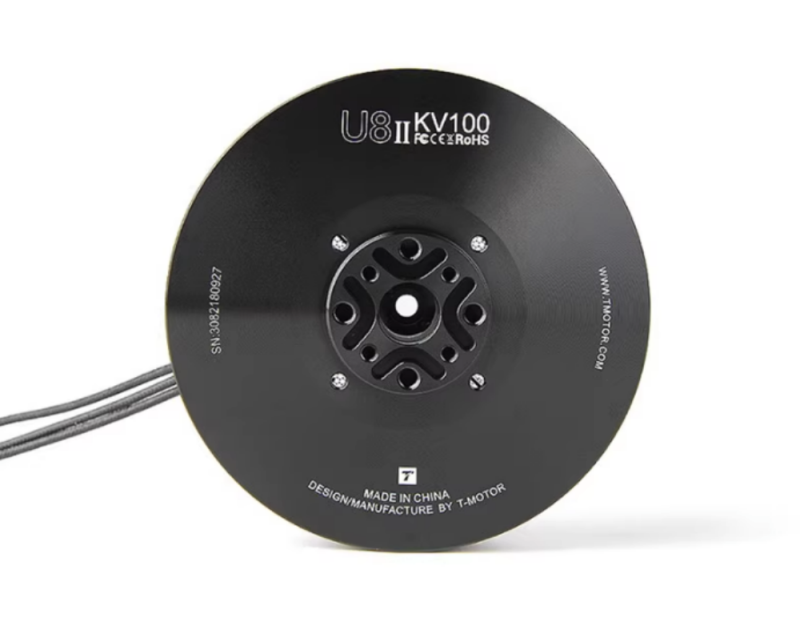

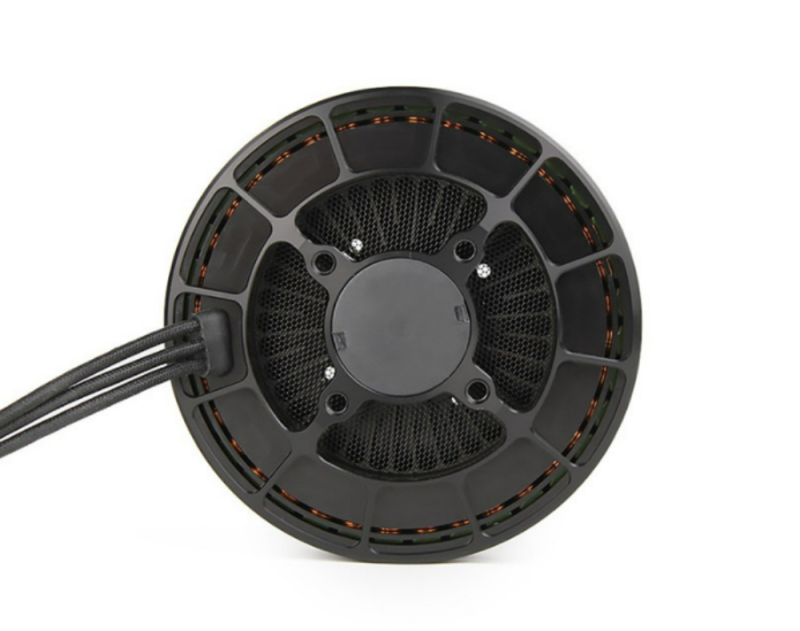

U8II-KV100 is an excellent efficiency multi-rotor brushless motor. It adopts 7075 aviation aluminum material imported from Germany, which reduces the overall strength of the motor and greatly enhances the structural strength. The service life of customized imported bearings can reach more than 1000 hours. The motor works normally under high-intensity working environment.A multi-rotor drone is a drone that uses multiple rotors to fly, and brushless motors are a commonly used power device in multi-rotor drones. Multi rotor drone motor is a motor based on electronic commutation technology. Its working principle is to achieve inversion control of the current through the sensors and controllers inside the motor, so that the motor can switch phases in a predetermined sequence, thereby achieving the normal operation of the motor. operation. Multi rotor drone motor is an important part of UAV power systems.
Advantages of Efficient brushless motor for multi rotor UAV:
1. Excellent structure design of uav power systems, efficient heat dissipation;
2. uav power systems have IP55 dustproof and waterproof;
3. The solar powered uav has ultra-light weight, and the same pulling force reduces the weight by 15%;
4. Solar powered uav has excellent and stable performance.
Main specifications of Efficient brushless motor for multi rotor UAV:
Project | Specifications |
product name | U8II-KV100 |
motor type | Multi-rotor motor |
Single axis recommended pull force | 3~4kg |
Single axis maximum pulling force | 8.7kg |
KV value | 100 |
Operating Voltage | 12S |
Dimensions (mm) | 87.1*29.1 |
weight | 272g |
Maximum power (180S) | 1406W |
Maximum current (180s) | 29.3A |
Internal resistance between phases | 170mΩ |
Recommended paddle | 27-28 inch |
Dimension drawing of Efficient brushless motor for multi rotor UAV:
Test data for Efficient brushless motor for multi rotor UAV:
