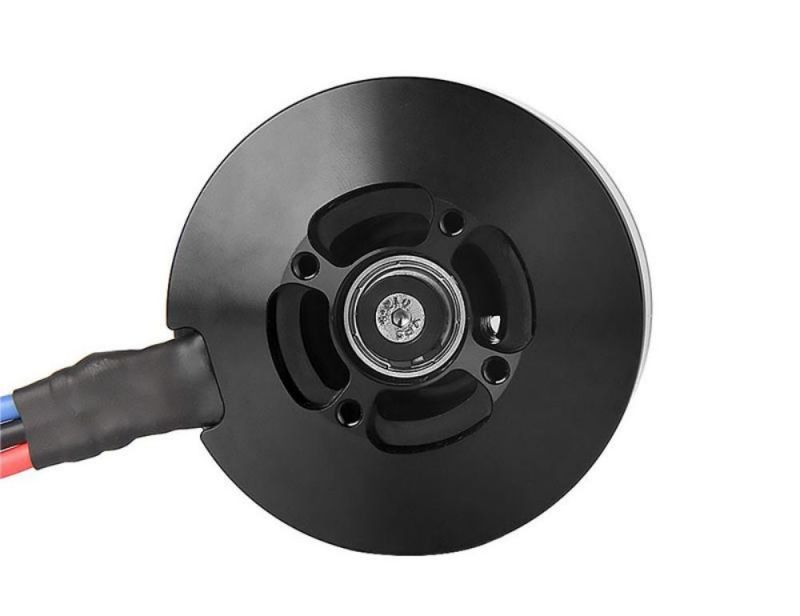

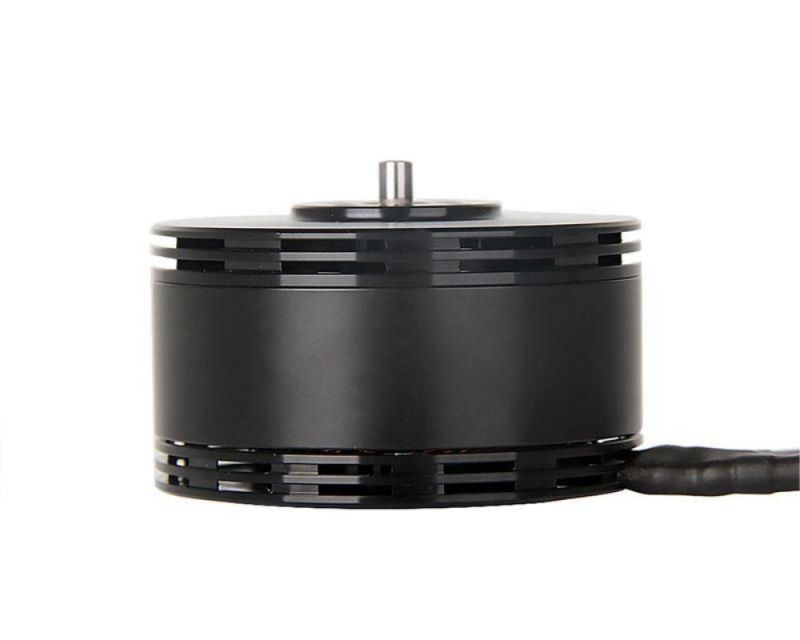

Brushless Motor For Vertical Multi Rotor (VTOL) UAV
1. Brushless Motor For Vertical Multi Rotor (VTOL) UAV is more efficient than brushed motors.
2. The Brushless Motor For Vertical Multi Rotor (VTOL) UAV is compatible with various drone models and configurations.
3. The Brushless Motor For Vertical Multi Rotor (VTOL) UAV has a lightweight structure, first-class materials, and durability.
- Information
Product introduction of Brushless Motor For Vertical Multi Rotor (VTOL) UAV:
The V series motor is a motor launched for the multi-rotor power of the vertical UAV. The UAV brushless motor has the characteristics of abundant power, large draw-to-weight ratio, overload capacity, and strong environmental adaptability, escorting every flight take -off and landing.Multi rotor drone brushless DC motor is a motor used to drive vertical multi-rotor drones. UAV brushless motor is also called brushless DC motor or permanent magnet brushless motor. It uses permanent magnets and electronic speed regulator to control the motor speed. Heavy Lift Drone Motors have higher efficiency, longer service life and lower noise than traditional brushed motors. They have no brushes and electric brushes, so friction losses are smaller and energy conversion efficiency is higher. In addition, brushless motors have higher power density and lower weight.
Product advantages of Brushless Motor For Vertical Multi Rotor (VTOL) UAV:
1. The UAV brushless motor has a well-designed structure and efficient heat dissipation.
2. Heavy Lift Drone Motors are IP55 dustproof and waterproof.
3. Multi rotor drone brushless DC motor is powerful and explosive. Powerful and explosive.
4. The UAV brushless motor adopts electronic speed regulation, which has higher control accuracy and can control the speed and thrust more accurately.
5. The UAV brushless motor has no wearing parts such as brushes and collector rings, so it has a longer life and lower failure rate.
Specifications of Multi rotor drone brushless DC motor:
project | Specifications |

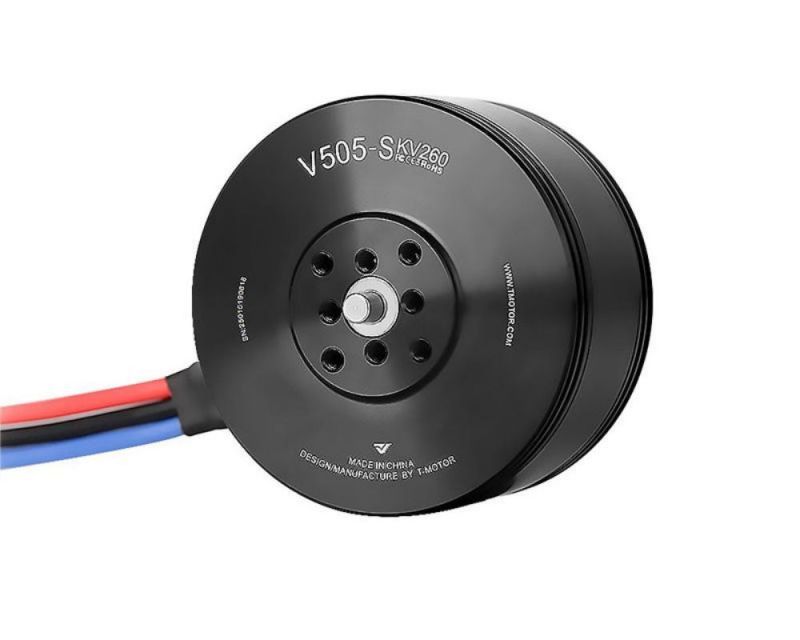

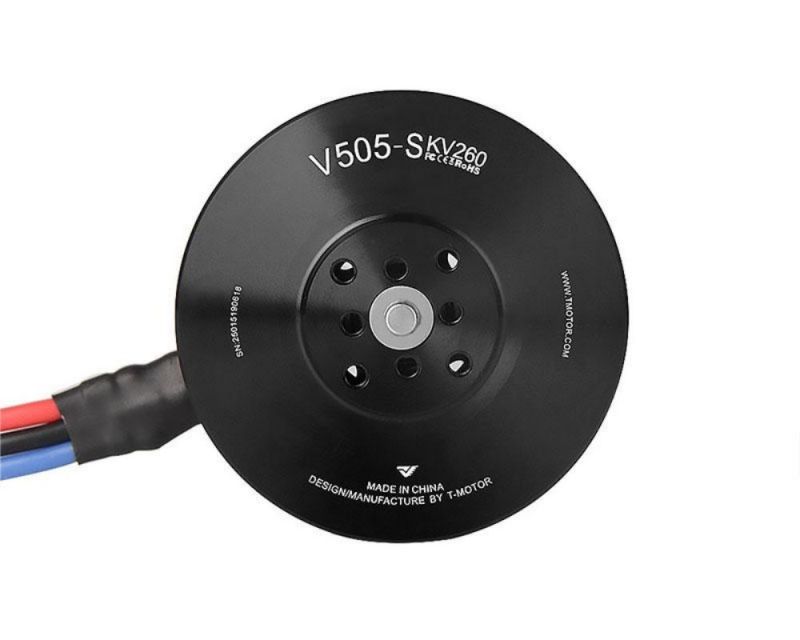

product name | V505-KV260 |
motor type | Multi-rotor motor |
Single axis recommended pull force | 2.5~3.5kg |
Single axis maximum pulling force | 8.7kg |
KV value | 260 |
Operating Voltage | 12S |
Dimensions (mm) | 55.6*38.9 |
weight | 215g |
Maximum power (180S) | 2500W |
Maximum current (180s) | 52A |
Internal resistance between phases | 58mΩ |
Recommended paddle | 16~17 inches |
Dimensional drawing of Brushless Motor For Vertical Multi Rotor (VTOL) UAV:
Test data of Brushless Motor For Vertical Multi Rotor (VTOL) UAV:
