13 Kg Electric Vertical Lift Fixed Wing (VTOL) UAV
1. The 13 Kg Electric Vertical Lift Fixed Wing (VTOL) UAV has excellent performance.
2. The 13 Kg Electric Vertical Lift Fixed Wing (VTOL) UAV adopts a fully automatic take-off and landing mode.
3. The 13 Kg Electric Vertical Lift Fixed Wing (VTOL) UAV has high strength adaptability.
- Information
Product introduction of 13 Kg Electric Vertical Lift Fixed Wing (VTOL) UAV:
The fixed wing vertical takeoff drone is a fixed-wing UAV platform with universal mounting capabilities that can take off and land vertically. The VTOL UAV can carry different payloads within 13kg to complete various tasks. This drone adopts an overall layout of fixed wing combined with four rotors and has complete autonomous flight capabilities. Its high adaptability to the environment enables the fixed wing vertical takeoff drone to perform a variety of different tasks. The VTOL UAV fixed wing can carry pods, photography equipment, emergency response devices, etc. to perform various tasks and is widely used in various industries and fields. The fixed wing vertical takeoff drone can achieve autonomous flight and consists of a body structure, power device, and electrical equipment.
The product advantages of the 13 Kg Electric Vertical Lift Fixed Wing (VTOL) UAV:
1. The performance of fixed wing drone vtol is superior, with excellent performance, using precise data control system, high control precision.
2. The fixed wing vertical takeoff drone is less dependent on the terrain. It adopts a fixed wing combined with a quadrotor model, which can realize vertical takeoff and landing, and has a wider range of applications.
3. The VTOL UAV fixed wing can carry a payload of up to 13kg and can perform a variety of flight missions, and has higher compatibility.
4. The fixed wing drone vtol can freely match the link and load system according to needs.
5. The fixed wing vertical takeoff drone has a long data link and can perform a variety of remote tasks.
6. The vtol uav fixed wing has high adaptability, not only not restricted by terrain, but also able to fly freely even in the case of high and low temperatures or light rain.
The main technical parameters of fixed wing vertical takeoff drone:
Performance / index. | Parameters. |

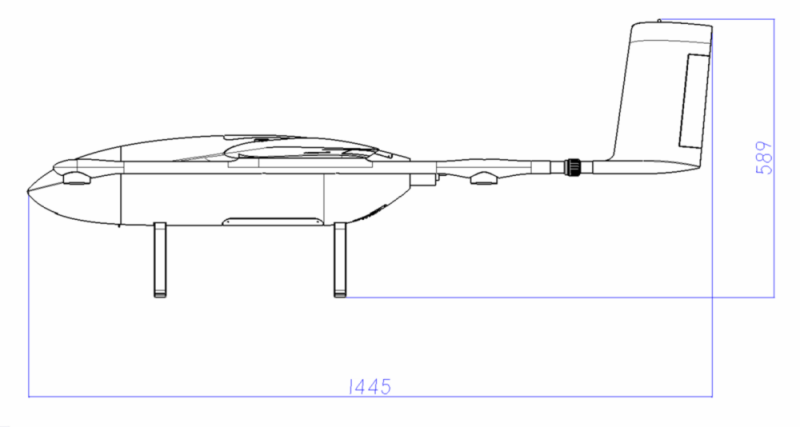

Fuselage length. | 1400mm. |
Wingspan. | 2500m. |
Maximum takeoff weight. | 12kg. |
Maximum payload. | 2kg. |
Flight duration. | 150min@1kg payload. |
Maximum voyage. | 150km. |
Cruising speed. | 70-90km/h. |
Stall speed. | 65km/h. |
Maximum rise limit. | 3000m. |
Maximum use altitude. | ≤ 5000m. |
Control distance. | Remote control: 1km. |
Wind resistance grade. | Ground station: 30km (standard). |
Use environment | ≤ 12m/s (force 6 wind). |
