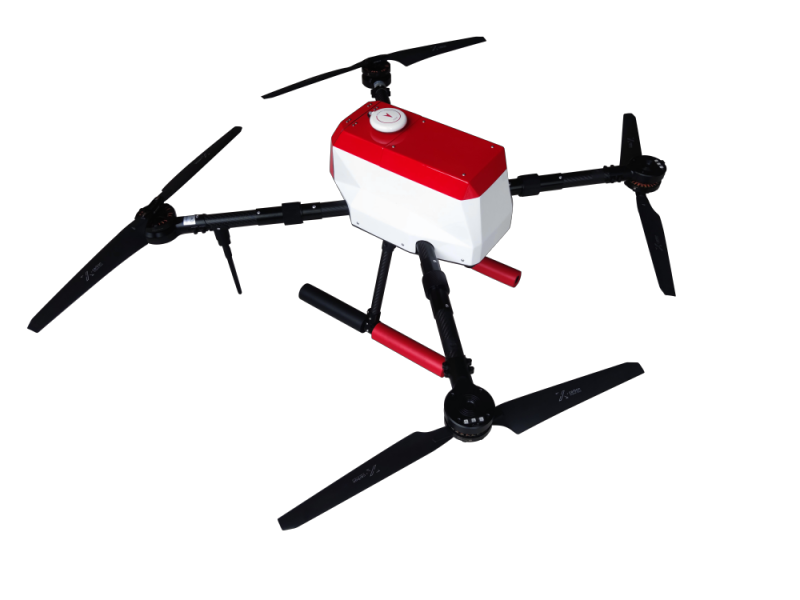

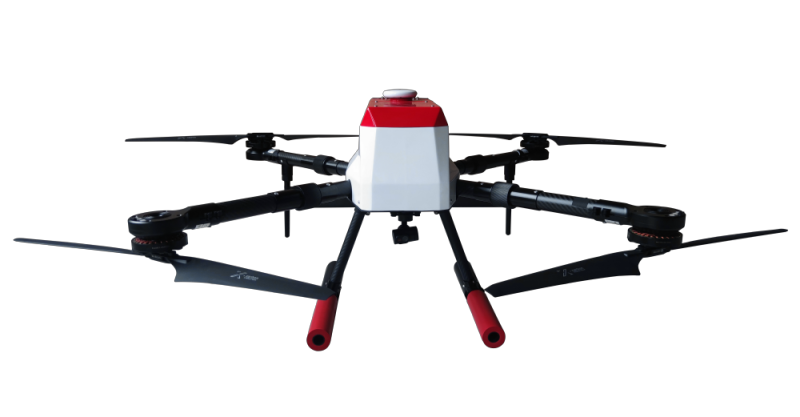

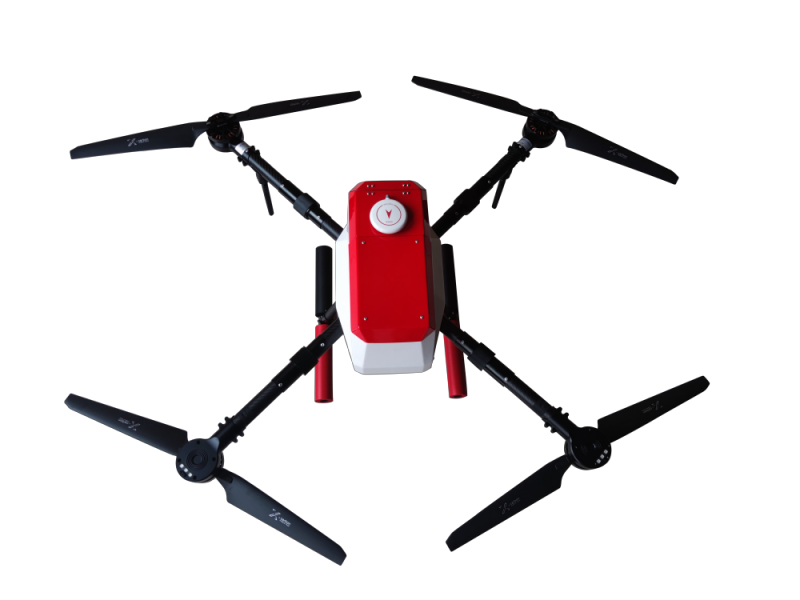

Tethered Multirotor Uav
1. Tethered Multirotor Uav has low cost of use, adopts surface tethered power supply, and has no cost of use of accessories
2. Tethered Multirotor Uav has high flexibility and strong adaptability.
3. Tethered Multirotor Uav has high safety performance and is equipped with multiple safety measures.
- Information
The XQ10T tethered UAV system is a large-load tethered quadrotor UAV system with universal loading capabilities. The Tethered multirotor uav platform has the following features and advantages:
1. The tethered uav is practical and efficient: it has a maximum load capacity of 3kg;
2. Long voyage time: tethered power supply, tethered quadcopter can guarantee more than 12 hours of empty time;
3. The use cost of tethered drones is low: ground tethered power supply is used, and there is no use cost of accessories;
4. Tethered Multirotor Uav is easy to operate: it integrates a special flight control and navigation system, and the whole process is fully autonomous. The operator only needs to send the flight plan, without professional training and operating experience;
5. Modular design: no complicated auxiliary equipment is needed, and the transportation, deployment, maintenance and withdrawal are simple;
6. The tethered quadcopter has added an intelligent backup parachute system, which can automatically open the parachute in an emergency and provide multiple guarantees;
7. Tethered quadcopter backup battery redundant design ensures flight safety and reliability.
System composition of Tethered multi rotor uav:
Product introduction of Tethered Multirotor Uav:
Tethered multi-rotor drones are a special type of drones, also known as "tethered aircraft" or "tethered drones". Unlike traditional multi-rotor UAVs, tethered multi-rotor UAVs have the ability to be fixed on the ground or other structures by ropes or rigging to achieve long-term hovering flight. The fuselage of the XQ10T four-rotor UAV platform adopts a carbon fiber composite material structure, which has high structural strength and light weight; the power system of tethered drones adopts a high-efficiency industrial-grade power system, which is stable and reliable; tethered uav can be equipped with industrial-grade flight control systems and networks The real-time differential RTK positioning and navigation system has outstanding advantages in positioning, flight stability, and wind resistance.
.
Specifications of Tethered multi rotor uav:
Performance | parameter |
Number of rotors | Four-rotor |
Symmetrical wheelbase | 900mm |
Expanded size (without propellers) | 820*700*450 (length*width*height) |
folded size | 500*450*430 (length*width*height) |
maximum take-off weight | 10kg |
maximum payload | 3kg |
Empty weight (without batteries) | 3kg |
Power battery weight | 4kg |
Working frequency | 2.4GHz |
flight time | 50min |
climb speed | 5m/s |
maximum descent speed | 3m/s |
Maximum level flight speed | 15m/s |
Maximum flight altitude | 5000m |
IP protection level | IP54 |
Working temperature | -20°C to 60°C |
Maximum wind resistance | 12m/s (level 6 wind) |
Dimensions of the transport box | 800*600*540 (length*width*height) |
Shipping Box Dimensions | 726*526*475 (length*width*height) |
Shipping weight (including flight case) | 30kg |
Ground control system：Integrated graphic display remote control
Integrated graphic display remote control technical specifications:
Remote control parameters
| Product number | H16 | Number of channels | 16 |
| Operating Voltage | 4.2V | RF power | 20DB@CE/23DB@FCC |
| Frequency band | 2.400-2.483GHz | Frequency hopping | New FHSS Frequency Hopping |
| Upgrade | APP online upgrade | Weight | 1034g |
| Size | 272*183*94mm | Battery | 20000mA/H |
| Battery life | 6-20 hours | Charging interface | TYPE-C |
| Application | Helicopter, fixed wing, multi-rotor, car and ship | ||
Receiver parameters
| Product number | R16 | Number of channels | 16 |
| Operating Voltage | 7.2-72V | RF power | 20DB@CE/23DB@FCC |
| Size | 76*59*11mm | Weight | 90g |
Three-body-MIPI camera
| Product number | MIPI | Working current (light on) | 140mA |
| Operating Voltage | 14-72V | Working current (without turning on the light) | 14mA |
| Size | 102.1*42.6*36.5mm | Weight | 55g |
Tethered power box technical parameters:
Performance | performance parameters |
Ground input voltage | 220vac |
power | ≥4KW |
ground output voltage | 400vdc |
cable length | 120m |
Cable Tensile Strength | 50kg |
Cable retractable system | automatic |
Cable weight | 18k/m |
Airborne Power Parameters | Input 380~420vdc, output 47.5~50vdc, rated power 3.5kw |
Tethered box power box size | 50cmx40cmx35cm（L*W*H） |
Tethered box power box weight | 30kg |
Performance | performance parameters |
