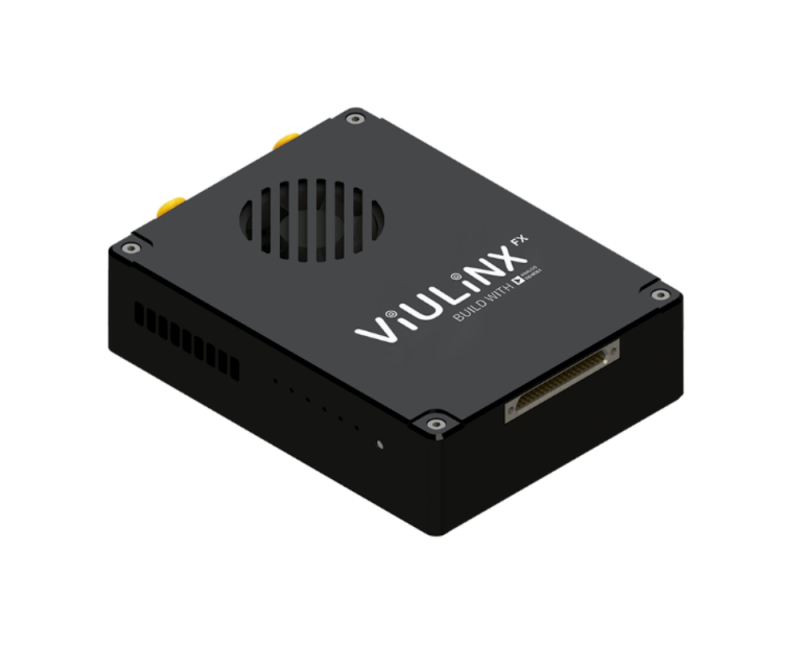

50km Integrate Data And Video Link

Introduction to 50 kilometers video integrated link:

Viulinx FX is a high-definition digital wireless transmission system optimized for unmanned equipment such as drones and unmanned ships. The system can provide drones with a stable high-speed video link from the unmanned equipment to the remote controller and a highly reliable narrowband data transmission and remote control link from the controller to the aircraft. UAV 50km data link bidirectional data wireless link has superior long-distance transmission performance and non-line-of-sight transmission performance, which can meet the different needs of various application scenarios such as drones, unmanned ships, and security monitoring.

50km data and video link Based on software-defined radio architecture and bottom-up design, Viulinx FX integrates the latest wireless communication technology codes such as orthogonal frequency division multiplexing modulation (OFDM), multi-antenna technology (MIMO), and low-density inspection ( LDPC). Viulinx FX has long transmission distance, high transmission reliability and small transmission delay. It supports point-to-point and point-to-multipoint transmission. It has compact structure, light weight and rich interfaces. It can not only meet the different needs of drone applications, but also due to the software-defined radio The architecture has flexible customization and continuous evolution capabilities, and can support the image data transmission needs of future unmanned equipment, security monitoring and other applications.

Features of UAV two way data radio link:

1. Use the 1330MHz~1450MHz frequency band;

2. The output power of 50km data and video link can reach up to 2W (33dBm);

3. Three-in-one image, data and control;

4. UAV 50km data link has 50KM wireless transmission (supports longer distance);

5. H265/H264 video compression;

6. UAV 50km data link adaptive retransmission, automatic frequency hopping.

Specifications of UAV two way data radio link:

Team introduction：

The company's core technical team has more than 10 years of product development, production and application experience in flight control systems, software platform development, UAV and civil aircraft design, composite material production, industry application system solutions and other technical fields, and has been deeply involved in the R & D, design and manufacture of national ARJ regional airliners, C919 and C929 commercial aircraft. And participate in the Canadian Bombardier C series, Q400, MA700 and other commercial aircraft technology research and development and manufacturing, has a large number of professional technical reserves and industry UAV commercial application cases.
